TP-LINK OMADA ES205GP V1 - Switch - Managed - 4 x 10/100/1000 (PoE+)
EAN:
Part number:
Item no:

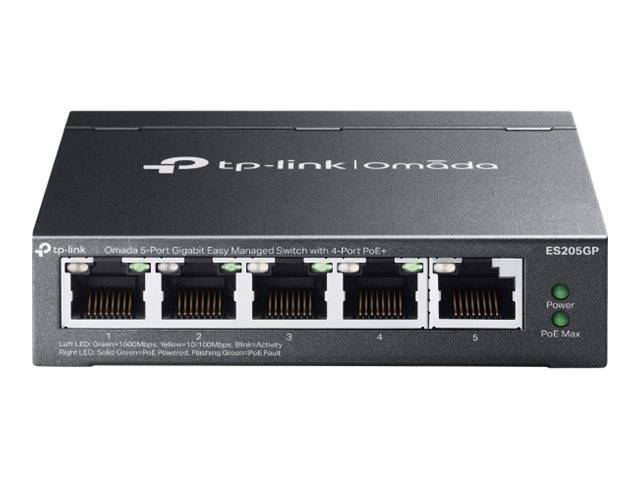

TP-LINK OMADA ES205GP V1 - Switch - Managed - 4 x 10/100/1000 (PoE+)
Highlights & Details
- Five Gigabit Ethernet ports, including four PoE+ for high-speed networks and direct power to devices
- 10 Gbps switching capacity and 7.4 Mpps packet forwarding rate for efficient computing
- Supports advanced features such as QoS, VLANs and IGMP snooping for optimized network performance
- Fanless metal casing for durability and quiet operation, suitable for each environment
- 65 W PoE budget with PoE+ support for a large range of up to 250 m, WAS enables a flexible device placement
Technical specifications
- + 1 x 10/100/1000 - Desktop, wall mountable - PoE+ (65 W)
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 GBit/s
- Working principle
Managed switch
- Ethernet ports
5
- IEEE 802.3af PoE
4
- PoE ports
4
- 10/100/1000 Mbps ports
5 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
8000
- Weight
0.74
- Width
100 mm
- Height
25 mm
- Depth
98 mm
- Type
ES205GP
- Interfaces
RJ45
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740178 TP-LINK OMADA ES205GP V1 - Switch - Managed - 4 x 10/100/1000 (PoE+)
Description
With four 10/100/1000 base-T PoE+ ports and an additional 10/100/1000 base-T port, the TP-LINK OMADA ES205GP V1 offers versatile connectivity options for a wide range of devices and ensures fast data transfer and a reliable power supply. With 10 Gbps switching capacity and 7.4 Mpps packet forwarding rate, this switch is designed to handle large amounts of traffic and provides a seamless network experience even under heavy loads. Equipped with functions such as quality of service (QoS), VLAN support and IGMP snooping, the TP-LINK OMADA ES205GP V1 simplifies the efficient management of network traffic and improves the performance and security of your network. The metal housing and the fan-less design provide for a long life and low-noise operation, as a result of which it is suitable for every environment. Its desktop and wall-mounted form factors provide flexible installation options. With a total PoE budget of 65 W and support for PoE+ with a range of up to 250 meters, this switch can easily power multiple devices over greater distances, reducing the need for additional power supplies and simplifying deployment.
This text is machine translated.
This text is machine translated.
Features
- TP-LINK Omada ES205GP V1 - Switch - 5 connections - managed
- Device type: Switch – 5 connections – managed
- Sub-type : Gigabit Ethernet
- Ports : 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000
- Power over Ethernet (PoE) : PoE+
- PoE budget : 65 W.
- Performance : 10 Gbps switching capacity
- Transfer rate packet: 7.4 Mpps
- Packet buffer size 4 Mbit
- Capacity : Priority queues: 8
- VLAN Groups: 32
- VLAN-support: 4000
- Size of the MAC address table : 8000 entries
- Jumbo Framework Support : 15KB
- Routing Protocol : IGMP, IGMPv2, IGMPv3
- Remote Management Protocol : DHCP
- Features : Cloud managed, PoE+ with a long range of up to 250 meters, QoS, PoE Auto Recovery, port isolation, prevention of loop formation, VLAN support, IGMP Snooping, without fan, metal casing, Traffic prioritization, SDN, reset button, security lock slot (cable lock sold separately), firmware upgradeable, automatic device recovery, cable diagnostics function, DHCP client, ZTP, Store-and-Forward, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Port-Based Priority, DSCP based QoS, organizer, WRR, bandwidth control, frequency limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, Loopback detection, flow control, port mirroring, fast termination, VLAN tagging
- Product certifications : IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1AB (LLDP), IEEE 802.3x, IEEE 802.1Q
- Dimensions (width x depth x height): 10 cm x 9.8 cm x 2.5 cm
