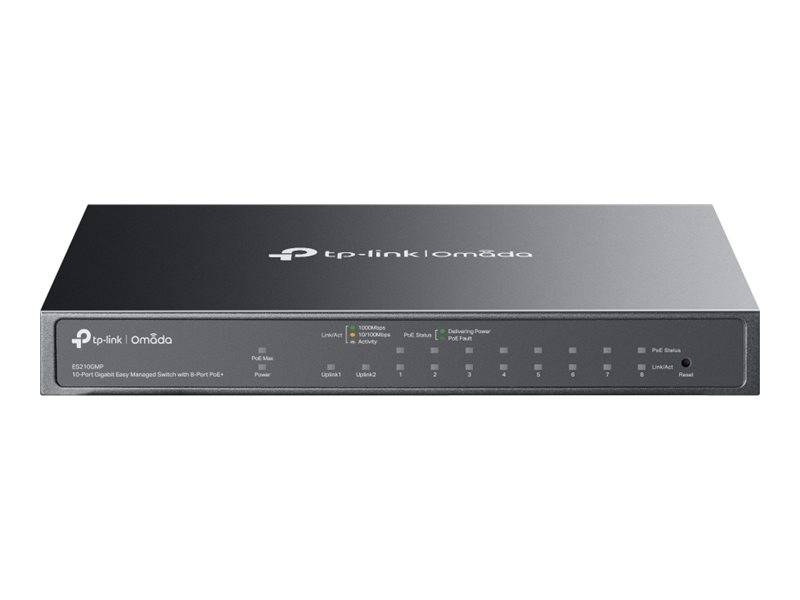

TP-LINK Omada ES210GP V1 - switch - managed - 8 x 10/100/1000 (PoE+)
EAN:
Part number:
Item no:
TP-LINK Omada ES210GP V1 - switch - managed - 8 x 10/100/1000 (PoE+)
Highlights & Details
- TP-LINK Omada ES210GP V1 - switch - 10 ports - managed; device type: Switch - 10 ports - managed; subtype: Gigabit Ethernet; ports: 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x combo gigabit SFP/RJ-45 (uplink); Power over Ethernet (PoE): PoE+; PoE budget: 123 W; power: Switching capacity: 20 Gbit/s.
- Transfer rate packet: 14.88 Mpps
- Packet buffer size: 4 Mbit; capacity: Priority queues: 8
- VLAN Groups: 32
- VLAN support: 4000; MAC address table size: 8000 entries; Jumbo frame support: 15KB; routing protocol: IGMP, IGMPv2, IGMPv3; Remote management protocol: DHCP; features: cloud managed, PoE+ with a long range of up to 250 meters, QoS, PoE Auto Recovery, port isolation, prevention of loop formation, VLAN support, IGMP Snooping, without fan, metal casing, Traffic prioritization, SDN, reset button, security lock slot (cable lock sold separately), firmware can be updated, automatic device search, cable diagnostics function, DHCP client, ZTP, Store-and-Forward, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Port-Based Priority, DSCP based QoS, organizer, WRR, bandwidth control, frequency limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, fast termination, VLAN tagging; Product certifications: IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1AB (LLDP), IEEE 802.3x, IEEE 802.1Q; Dimensions (width x depth x height): 20.9 cm x 12.6 cm x 2.6 cm
Technical specifications
- TP-LINK Omada ES210GP V1 - switch - 10 connections - managed
- Device type: Switch – 10 connections – managed
- Sub-type : Gigabit Ethernet
- Ports : 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Combo Gigabit SFP/RJ-45 (Uplink)
- Power over Ethernet (PoE) : PoE+
- PoE budget : 123 W.
- Performance : 20 Gbps switching capacity
- Transfer rate packet: 14.88 Mpps
- Packet buffer size 4 Mbit
- Capacity : Priority queues: 8
- VLAN Groups: 32
- VLAN-support: 4000
- Size of the MAC address table : 8000 entries
- Jumbo Framework Support : 15KB
- Routing Protocol : IGMP, IGMPv2, IGMPv3
- Remote Management Protocol : DHCP
- Features : Cloud managed, PoE+ with a long range of up to 250 meters, QoS, PoE Auto Recovery, port isolation, prevention of loop formation, VLAN support, IGMP Snooping, without fan, metal casing, Traffic prioritization, SDN, reset button, security lock slot (cable lock sold separately), firmware can be updated, automatic device search, cable diagnostics function, DHCP client, ZTP, Store-and-Forward, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Port-Based Priority, DSCP based QoS, organizer, WRR, bandwidth control, frequency limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, Loopback detection, flow control, port mirroring, fast termination, VLAN tagging
- Product certifications : IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1AB (LLDP), IEEE 802.3x, IEEE 802.1Q
- Dimensions (width x depth x height): 20.9 cm x 12.6 cm x 2.6 cm
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
20 GBit/s
- Working principle
Managed switch
- Ethernet ports
8
- IEEE 802.3af PoE
8
- PoE ports
8
- SFP ports
1 x
- 10/100/1000 Mbps ports
10 x
- Fibre-optic ports
1
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- Router features
PoE
- MAC addresses
8000
- Weight
1.62
- Width
209 mm
- Height
26 mm
- Depth
126 mm
- Type
Omada
- Interfaces
RJ45
- Factory colour
Black
- Operating voltage
53.5 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740155 TP-LINK Omada ES210GP V1 - switch - managed - 8 x 10/100/1000 (PoE+)
Description
TP-LINK OMADA ES210GMP Switch type: Managed. Basic Switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), number of basic switching RJ-45 Ethernet ports: 10. MAC address table: 8000 entries, routing/switching capacity: 20 Gb/s. Network standards IEEE 802.1Q, IEEE 802.1AB, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage 53.5 V. Power over Ethernet (PoE). Wall
This text is machine translated.
This text is machine translated.
Features
- TP-LINK Omada ES210GMP V1 - switch - 10 connections - managed
- Device type: Switch – 10 connections – managed
- Sub-type : Gigabit Ethernet
- Ports : 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Combo Gigabit SFP/RJ-45 (Uplink)
- Power over Ethernet (PoE) : PoE+
- PoE budget : 123 W.
- Performance : 20 Gbps switching capacity
- Transfer rate packet: 14.88 Mpps
- Packet buffer size 4 Mbit
- Capacity : Priority queues: 8
- VLAN Groups: 32
- VLAN-support: 4000
- Size of the MAC address table : 8000 entries
- Jumbo Framework Support : 15KB
- Routing Protocol : IGMP, IGMPv2, IGMPv3
- Remote Management Protocol : DHCP
- Features : Cloud managed, PoE+ with a long range of up to 250 meters, QoS, PoE Auto Recovery, port isolation, prevention of loop formation, VLAN support, IGMP Snooping, without fan, metal casing, Traffic prioritization, SDN, reset button, security lock slot (cable lock sold separately), firmware upgradeable, automatic device recovery, cable diagnostics function, DHCP client, ZTP, Store-and-Forward, Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X), Port-Based Priority, DSCP based QoS, organizer, WRR, bandwidth control, frequency limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, fast termination, VLAN tagging, 6 kV surge protection, 8KV ESD Protector (air gap discharge), 4KV ESD Protector (contact discharge)
- Product certifications : IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1AB (LLDP), IEEE 802.3x, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
- Dimensions (width x depth x height): 20.9 cm x 12.6 cm x 2.6 cm
