TP-LINK Omada SG2005P-PD V1.6 - switch - Smart - 1 x 10/100/1000 (PoE++)
EAN:
Part number:
Item no:
Datasheet (PDF)
TP-LINK Omada SG2005P-PD V1.6 - switch - Smart - 1 x 10/100/1000 (PoE++)
Highlights & Details

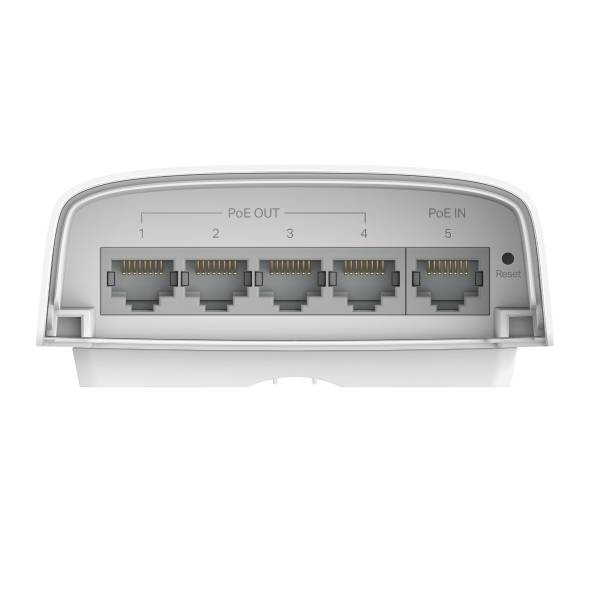

- 5 Gigabit Ethernet ports, including 1 PoE+ and 4 PoE+ for flexible network configurations
- Supports up to 4000 VLAN groups for comprehensive network segmentation
- Advanced security features such as ACL, IPMB and DoS protection
- Cloud management for easy remote network monitoring and management

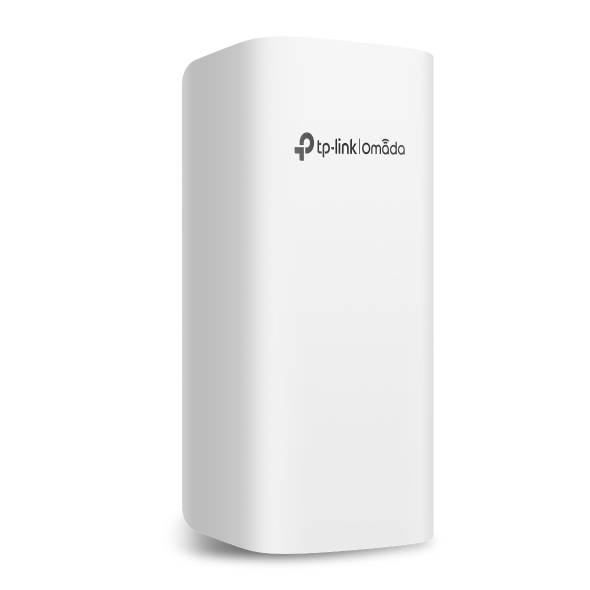

- Weather-proof, dust-proof and UV-resistant housing for outdoor use
Technical specifications

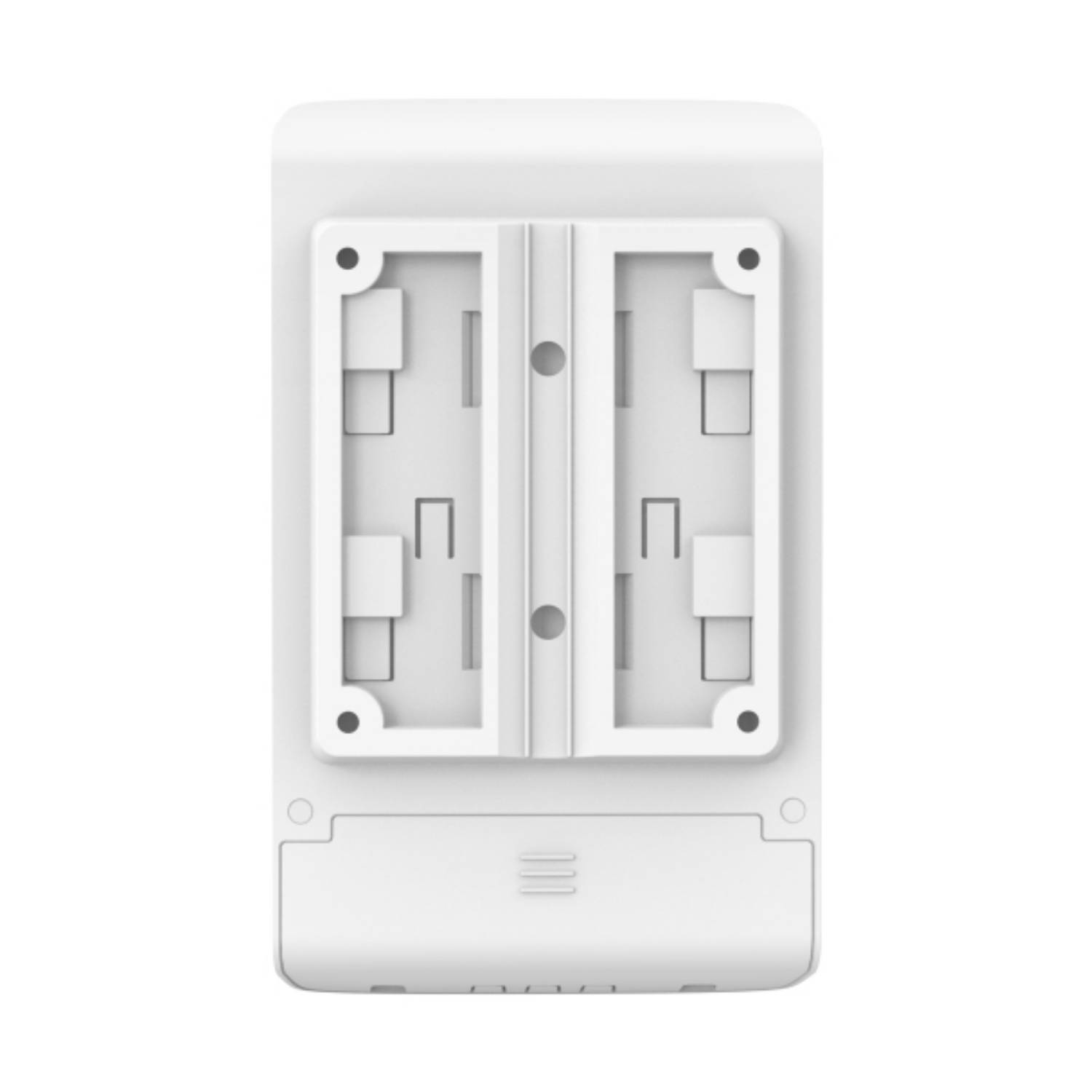

- + 4 x 10/100/1000 (PoE+) - Pole mount, wall mountable - PoE++ (64 W)
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 GBit/s
- Working principle
Managed switch
- Ethernet ports
5
- PoE ports
4
- 10/100/1000 Mbps ports
5 x
- Jumbo frames
Yes
- Router features
PoE
- Weight
0.47 kg
- Width
170 mm
- Height
38.5 mm
- Depth
100 mm
- Type
SG2005P-PD
- Interfaces
RJ45
- Factory colour
White
- Case type
Desktop
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3733007 TP-LINK Omada SG2005P-PD V1.6 - switch - Smart - 1 x 10/100/1000 (PoE++)
User & Safety Instructions
User & Safety Instructions 3733007 TP-LINK Omada SG2005P-PD V1.6 - switch - Smart - 1 x 10/100/1000 (PoE++)
Description
With a total of 5 ports, including 1 PoE++ and 4 PoE+ ports, the TP-LINK Omada SG2005P-PD V1.6 offers versatile connectivity options for a variety of devices and ensures efficient power and data transfer. Equipped with features such as ACL (access control list) support, IP/Mac/port binding (IPMB) and DoS attack protection, this switch provides for a secure network environment and protects against unauthorized access and different types of attacks. The support of numerous remote management protocols, including SNMP, RMON and SSH, as well as cloud management functions enable simple and efficient monitoring and management of the network infrastructure. The TP-LINK Omada SG2005P-PD V1.6 is designed for harsh environmental conditions and has a weatherproof, dust-proof and UV-resistant housing, so that it is suitable for outdoor installations. With support for up to 4000 VLAN groups, Quality of Service (QoS) for traffic prioritization, and advanced routing protocols, this switch is able to handle complex network configurations and ensure smooth operation.
This text is machine translated.
This text is machine translated.
Features
- TP-LINK Omada SG2005P-PD V1.6 - Switch - 5 ports - Smart
- Device type: Switch – 5 connections – Smart
- Sub-type : Gigabit Ethernet
- Ports : 1 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE+)
- Power over Ethernet (PoE) : PoE+
- PoE budget : 64 W.
- Max. Transmission distance : 100 m.
- Performance : 10 Gbps switching capacity
- Transfer rate packet: 7.44 Mpps
- Packet buffer size 4.1 Mbit / s.
- Capacity : Priority queues: 8
- IPv6 Interfaces: 32
- IPv4 interfaces: 32
- Static routes: 32
- Multicast Groups: 511
- Total Link Aggregation Groups: 8
- Multicast filter 256
- Layer 2 Multicast Filter entries per profile: 16
- VLAN Groups: 4000
- MAC VLAN address entries 12
- Access control entries: 230
- IPv6 MAC port binding entries: 512
- IPv4 Source Guard inputs: 253
- IPv6 Source Guard inputs: 183
- MAC addresses per port: 64
- Size of the MAC address table : 8000 entries
- Jumbo Framework Support : 9KB
- Routing protocol : static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- Remote management protocol : RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, DHCP, HTTPS, CLI, MIB, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 2C, SNMP 3, SSH-2, ICMP, Telnet, HTTP, TFTP
- Features : Weather-proof, waterproof, dust-proof, UV-resistant housing, 4 KV flash protection (common mode), cloud-managed, ACL support, VLAN support, QoS, SDN, without fan, PoE+ with a long range of up to 200 m, CoS, DSCP prioritization, queue planning support, SP, WRR, bandwidth control, frequency limit, broadcast storm control, multicast storm control, Storm Control, Unicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay proxy ARP, link aggregation, BPDU filter, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, MVR, Multicast filter function, MLD snooping, device detection, firmware can be updated, network monitoring, Fixed-time restart, Path MTU Discovery, GVRP, Voice VLAN, AAA, DHCP snooping, ND detection, protection from DoS attacks, connection isolation, IPMB, ZTP, BOOTP support, cable diagnostics function, EEE, SNTP support, system log, guest VLAN, MAB, port security, ARP inspection, quick exit, ToS, reset button
- Product certifications : IEEE 802.3af, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.11g, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1AB (LLDP)
- Dimensions (width x depth x height): 10 cm x 3.85 cm x 17 cm
- System Requirements : Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
