TP-LINK Router Router 1 GBit/s
EAN:
Part number:
Item no:

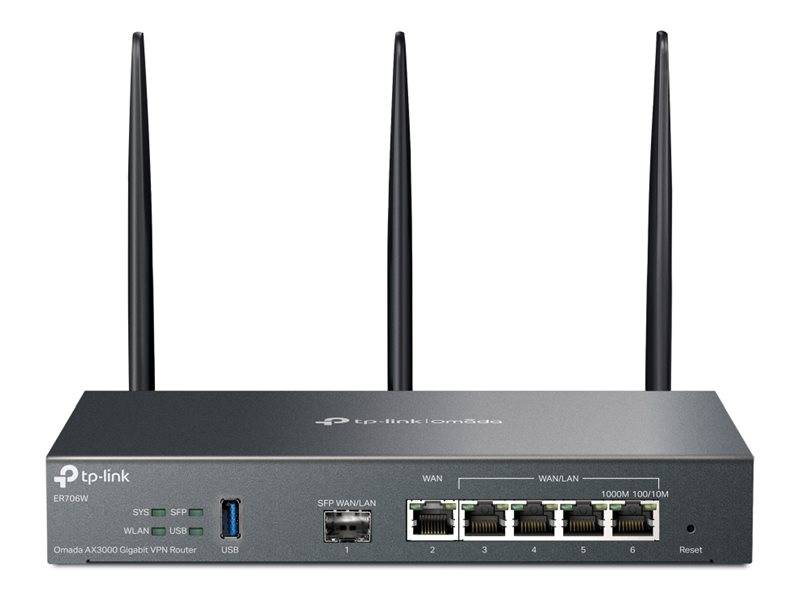

TP-LINK Omada ER706W V1 - wireless router 4-port switch
Highlights & Details
- Number of ports: 4 port
- Product type: Router
- Type:Router
- Transfer rate 1 Gbps
Technical specifications
- 1GbE - WAN ports 6 - Wi-Fi 6 - Dual band - wall mountable
- Product type
Router
- Transfer rate
1 GBit/s
- 10/100/1000 Mbps ports
4 x
- 10/100/1000 Mbps WAN ports
6 x
- Interfaces
Wi-Fi 6 (IEEE 802.11ax)
- Router features
Built-in Firewall
- LAN transfer rate
1000 MBit/s
- Factory colour
Black
- Depth
131 mm
- Height
35 mm
- Width
226 mm
- Memory techology
DDR4
- Max. output current
2 A
- Output voltage
12 V
- Weight
1.52
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739521 TP-LINK Router Router 1 GBit/s
Description
TP-LINK OMADA ER706W V1 - - Wireless router - 4-port switch - 1GbE - WAN ports 6 - Wi-Fi 6 - Dual band - wall-mounted
This text is machine translated.
This text is machine translated.
Features
- TP-LINK OMADA ER706W V1 - wireless router - Wi-Fi 6 - desktop, wall-mounted
- Device Type : Wireless Router - 4-Port Switch (Integrated)
- Housing type : Desktop, wall-mounted
- Digital Signaling Protocol : H.323, SIP
- WAN Ports No. : 6
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency band : 2.4 GHZ / 5 GHz
- Power : Maximum throughput (5 GHz): 2402 Mbps
- Maximum throughput (2.4 GHz) 574 Mbps
- Channel bandwidth (5 GHz): 160 MHz
- GRE throughput unencrypted: 624.2 Mbps
- GRE throughput encrypted: 301.5 Mbps
- VPN WireGuard throughput 393.5 Mbps
- VPN throughput (256-bit AES+SHA1 IPSec): 646.9Mbps
- VPN throughput (256-bit AES+SHA256 IPSec): 642.8Mbps
- VPN throughput (256-bit AES+SHA384 IPSec): 648.9Mbps
- VPN-throughput (256-bit AES+SHA512 IPSec): 658.4 Mbps
- OpenVPN throughput: 129.3 Mbps
- Unencrypted VPN throughput (L2TP): 1034.0 Mbps
- Encrypted VPN (L2TP) throughput: 570.0 Mbps
- Unencrypted VPN throughput (PPTP): 1165.0 Mbps
- Encrypted VPN throughput (PPTP): 209.0 Mbps
- VPN throughput (SSL): 126.7Mbps
- Download forwarding rate (packet size 66 bytes): 1453489 pps
- Upload forwarding rate (packet size 66 bytes): 1453488 pps
- Download forwarding rate (packet size 1518 bytes): 81274 pps
- Upload forwarding rate (packet size 1518 bytes): 91275 pps
- Capacity : Simultaneous sessions: 150000
- New sessions per second: 5100
- SSL VPN tunnels: 50
- IPSec VPN tunnel:100
- PPTP VPN clients: 10
- PPTP VPN-Tunnel 50
- L2TP VPN Clients: 10
- L2TP VPN Tunnel: 50
- OpenVPN clients: 5
- OpenVPN tunnels: 55
- Network/transport protocol : IPSec, WireGuard, PPTP, L2TP, OpenVPN, PPPOE, DHCP, FTP, TCP, UDP, DDNS
- Routing Protocol : GRE, static IP routing, RIP, OSPF
- Remote Management Protocol : DHCP, ICMP, SNMP 1, SNMP 2c, SNMP 3
- VoIP protocols : H.323, SIP
- Features : SON technology, self healing network, meshed network, DDoS protection, IP address filtering, MAC address filter, URL filtering, load balancing, IP MAC integration, reset button, seamless roaming, beamforming technology, MU-MIMO technology, guest network, NAT support, ACL support, IP policy routing, bandwidth control, port control, DMZ support, ALG support, session rate limiting, IPsec failover, IPSec NAT-T, DPD, PFS, PPTP VPN server, L2TP VPN client, L2TP over IPSec, OpenVPN-server, GARP, ARP Inspection, Remote Device Cloud Access, DynDNS, NTP support, Port Mirroring, Syslog support, Restart at a specified time
- Product certifications : UPnP, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Dimensions (width x depth x height): 22.6 cm x 13.1 cm x 3.5 cm
- System Requirements : UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/10/11/8/8.1/7
