TP-LINK Router Router
EAN:
Part number:
Item no:
Highlights & Details

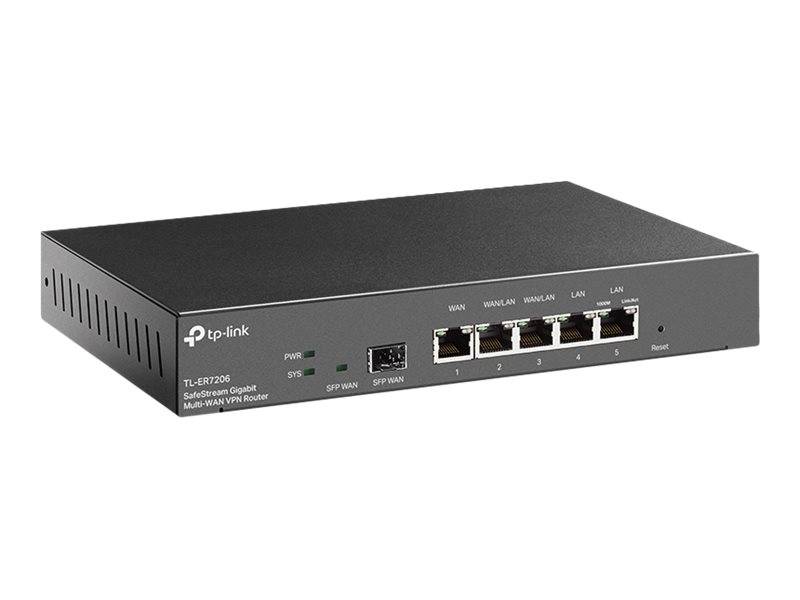

TP-LINK SafeStream TL-ER7206 - V1 - Router 1GbE
- Integrated in the Omada SDN
- Centralized management
- Gigabit network connections
- Up to 4 WAN ports
- Highly secure VPN
- Extensive security functions
Technical specifications
- - 1GbE
- Product type
Router
- Type
Router
- Function
Router
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Interfaces
Gigabit LAN (1 Gbps)
- 10/100/1000 Mbps ports
4 x
- 10/100/1000 Mbps WAN ports
4 x
- Width
226 mm
- Height
35 mm
- Depth
131 mm
- Weight
1.41
- Factory colour
Black
- Power supply (details)
100 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739208 TP-LINK Router Router
Description
General
Network standard
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T (X)
Supported network protocols
TCP/IP, DHCP, ICMP, NAT, PPPOE, SNTP, HTTP, DNS, IPSEC, PPTP, L2TP
Supported security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES IPSEC, MD5, SHA-1, SNMP, SNMPV2, SNMPv3
Firewall
SPI
VPN support
IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN
Cable included
AC
Flash Memory
132 MB
Memory capacity
512 MB
Internal memory type
DRAM
This text is machine translated.
Network standard
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T (X)
Supported network protocols
TCP/IP, DHCP, ICMP, NAT, PPPOE, SNTP, HTTP, DNS, IPSEC, PPTP, L2TP
Supported security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES IPSEC, MD5, SHA-1, SNMP, SNMPV2, SNMPv3
Firewall
SPI
VPN support
IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN
Cable included
AC
Flash Memory
132 MB
Memory capacity
512 MB
Internal memory type
DRAM
This text is machine translated.
Features
- TP-LINK SafeStream TL-ER7206 - V1 - router - desktop
- Device Type : Routers
- Housing type : Desktop
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance : Unencrypted VPN throughput (PPTP): 1.3793 Gbps
- Encrypted VPN throughput (PPTP): 115.6 Mbps
- Unencrypted VPN throughput (L2TP): 1.3603 Gbps
- Encrypted VPN (L2TP) throughput: 202.3 Mbps
- VPN-throughput (128-bit AES IPSec): 291.6 Mbps
- Routing throughput (packet size: 1518 bytes): 81274 pps
- Upload forwarding rate (packet size 66 bytes): 486918pps
- Download forwarding rate (packet size 66 bytes): 488372 pps
- NAT upload throughput (PPTP): 918.9 Mbps
- NAT download throughput (PPTP): 914.7 Mbps
- NAT upload throughput (L2TP): 918 Mbps
- NAT download throughput (L2TP): 917.9 Mbps
- NAT upload throughput (PPPoE): 939.7 Mbps
- NAT download throughput (PPPoE): 937.9 Mbps
- NAT upload throughput (DHCP): 940.3 Mbps
- NAT download throughput (DHCP): 940.4 Mbps
- Capacity : New sessions per second: 5500
- Simultaneous connections: 150000
- Network/transport protocol : TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPS
- Routing Protocol : IGMPv2, static IP routing, IGMPv3
- Remote Management Protocol : SNMP 1, SNMP 3, SNMP 2c, ICMP
- VoIP protocols : H.323, SIP
- Features : NAT support, Syslog support, URL filtering, DPD, IPSec NAT-T, virtual server support, DHCP server, reset key, bandwidth control, port control, IP MAC Integration, GARP, Captive Portal, ARP Inspection, 4 kV Surge Protection, network diagnostics, web filtering, policy-based routing, PFS, ZTP, L2TP support, DynDNS, fixed-time restart, OpenVPN server, Block TCP flood, black UDP flood
- Product certifications : IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP
- Power supply : AC 120/230 V (50/60 Hz)
- Dimensions (width x depth x height): 22.6 cm x 13.1 cm x 3.5 cm
- System Requirements : UNIX, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
