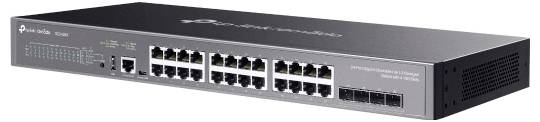

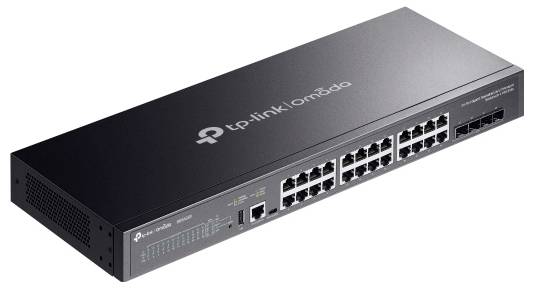

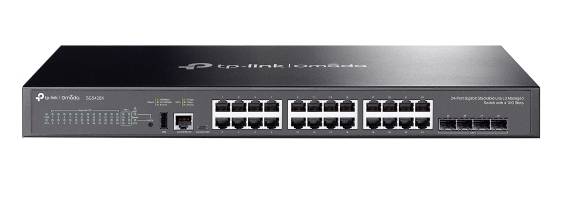

TP-LINK SG5428X Omada SG5428X V1 Managed network switch 24 ports 128 Gbit/s PoE
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK Omada SG5428X network switch managed L3 Gigabit Ethernet (10/100/1000) black
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45
- 10G support
- MAC address table: 16000 entries Routing/switching capacity: 128 Gb/s.
- Access control list
- Rack mounting Stackable
- AC power supply included
Technical specifications
- Memory type: DRAM
- Energy source: AC
- Product type
Managed network switch
- Transfer rate
128 Gbit/s
- Working principle
Managed switch
- SFP+ ports
4 x
- 10/100/1000 Mbps ports
24 x
- Router features
PoE
- MAC addresses
16000
- Width
440 mm
- Height
44 mm
- Depth
180 mm
- Type
Omada SG5428X V1
- Factory colour
Black
- Port
24 ports
- No. of USB A 2.0 ports
1 x
- Power supply (details)
100 - 240 V
- CPU speed
1200 MHz
2000 MB
- Safety
SNMP
SNMPv2
SNMPv3
- UKCA
yes
- Fanless
yes
- Operating temperature (T-T)
-5 - 45 °C
- Basic switching RJ-45 Ethernet ports quantity
24
- Packet buffer memory
12 MB
- Physical stacking (units)
4
- Storage relative humidity (H-H)
5 - 90 %
- Password protection
yes
- Switching capacity
128 Gbit/s
- Heat dissipation
66.87 BTU/h
- Rack mount kit
yes
- IP-MAC-Port binding
yes
- ARP inspection
yes
- Jumbo frames
9000
- SFP+ module slots quantity
4
- Bandwidth
64 Gbit/s
- Power over Ethernet (PoE)
no
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Stackable
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Static port security
yes
- Telnet
yes
- USB Type-C ports quantity
1
- Web-based management
yes
- Store-and-forward
yes
- Access Control List (ACL)
yes
- Gigabit Ethernet (copper) ports quantity
24
- Quick start guide
yes
- Cloud-managed
yes
- Firmware upgradeable
yes
- Rack mounting
yes
- Mean time between failures (MTBF)
519.543 h
- Flash memory
512 MB
- MAC address table
16000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Number of VLANs
4000
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- 10G support
yes
- Storage temperature (T-T)
-40 - 70 °C
- Surge protection voltage
6 kV
- Forwarding rate
95.23 Mpps
- Built-in processor
yes
- Surge protection
yes
- Power consumption (max)
19.6 W
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799863 TP-LINK SG5428X Omada SG5428X V1 Managed network switch 24 ports 128 Gbit/s PoE
Description
The TP-LINK Omada SG5428X V1 was developed in order to increase network performance and reliability for companies and enterprises. Equipped with a robust switching capacity of 80 Gbps and a forwarding bandwidth of 64 Gbps, this switch ensures efficient data processing and fast connectivity. The device supports 24 ports with 10/100/1000 Base-T connections and 4 additional 10 GB Ethernet SFP+ ports, providing flexibility to expand the network infrastructure as needed. The SG5428X V1 has been developed with emphasis on advanced features and supports IGMP snooping, VLAN configuration and advanced security protocols such as Secure Shell and RADIUS authentication. The fan-less design provides for a low-noise operation, while functions like DHCP-snooping and the support of access control lists (ACL) contribute to a secure and efficient network environment. The supplied rack mounting kit allows easy installation, suitable for different environments, and the device's longevity is ensured by an average operating time between failures of over 519,543 hours.
