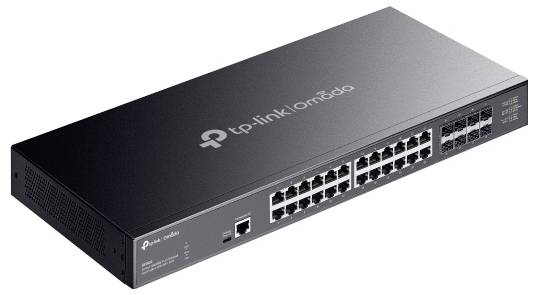

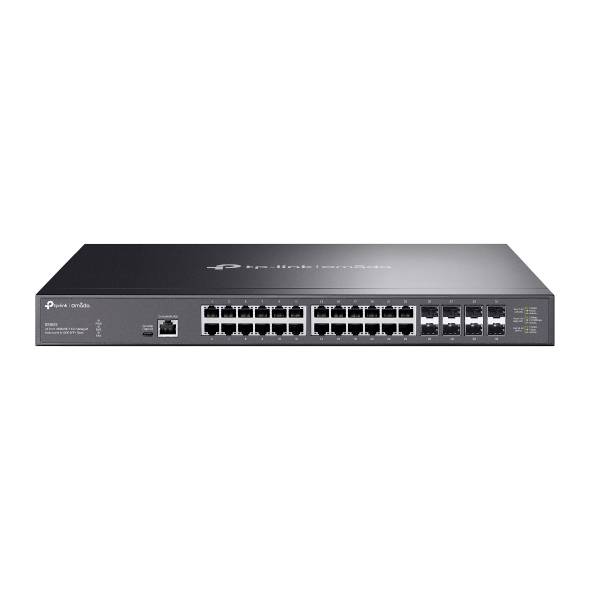

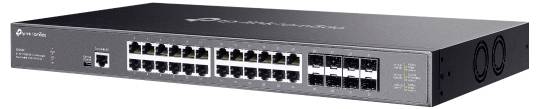

TP-LINK SX3832 Omada SX3832 V1.6 Managed network switch 24 ports
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK Omada 24-port 10GBASE-T L2+ "managed switch" with 8 10GE SFP+ slots
- Managed L2/L2+ Web-based management
- Quality of Service (QoS) Support Site Settings Configuration (CLI)
- Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45/USB Type-C.
- 10G support
- MAC address table: 32000 entries Routing/switching capacity: 640 Gb/s.
- Access control list
- 1U Rack-mounting Stackable
- AC power supply included
Technical specifications
- Form factor: 1U
- Number of fans: 2 fans
- Energy source: AC
- Product type
Managed network switch
- Working principle
Managed switch
- SFP+ ports
8 x
- No. of 100 Mbps/1Gbps/10Gbps ports
24 x
- MAC addresses
32000
- Width
440 mm
- Height
44 mm
- Depth
220 mm
- Type
Omada SX3832 V1.6
- Factory colour
Black
- Port
24 ports
- Power supply (details)
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
-5 - 50 °C
- Basic switching RJ-45 Ethernet ports quantity
24
- Packet buffer memory
24 MB
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
640 Gbit/s
- Heat dissipation
363.23 BTU/h
- Rack mount kit
yes
- Loop protection
yes
- ARP inspection
yes
- Jumbo frames
9000
- SFP+ module slots quantity
8
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Stackable
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Static route
yes
- Configuring Location Settings (CLI)
yes
- USB Type-C ports quantity
1
- Web-based management
yes
- Access Control List (ACL)
yes
- System event log
yes
- Rate limiting
yes
- IP routing
yes
- Quick start guide
yes
- Cloud-managed
yes
- Rack mounting
yes
- MAC address table
32000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Spanning tree protocol
yes
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- 10G support
yes
- Storage temperature (T-T)
-40 - 70 °C
- Forwarding rate
240 Mpps
- Power consumption (max)
106.5 W
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799853 TP-LINK SX3832 Omada SX3832 V1.6 Managed network switch 24 ports
Description
The TP-LINK Omada SX3832 V1.6 is designed to improve network performance with advanced features. This switch supports a significant number of interfaces and Ethernet ports, providing flexibility in network design. With a switching capacity of 640 Gbps and a packet forwarding rate of 240 Mpps, this device can handle high traffic efficiently.
Equipped with comprehensive remote management protocols, including SNMP and CLI, the SX3832 V1.6 enables a seamless monitoring of network operation. Its robust security features, such as 802.1x authentication and DHCP snooping, provide critical protection against potential threats. In addition, the switch's energy-efficient design helps reduce power consumption and makes it an intelligent choice for sustainable networking solutions.
This text is machine translated.
Equipped with comprehensive remote management protocols, including SNMP and CLI, the SX3832 V1.6 enables a seamless monitoring of network operation. Its robust security features, such as 802.1x authentication and DHCP snooping, provide critical protection against potential threats. In addition, the switch's energy-efficient design helps reduce power consumption and makes it an intelligent choice for sustainable networking solutions.
This text is machine translated.
Features
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the Web or the†-APP
- Standalone management via Web, CLI, SNMP, and RMON
- Static routing helps route internal traffic for greater efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM and DDM
- ERPS supports fast protection and recovery in a ring topology
- Robust metal casing and rack-mountable design
