Buy TP-LINK SX3832MPP Omada SX3832MPP V1 Managed network switch 24 ports PoE

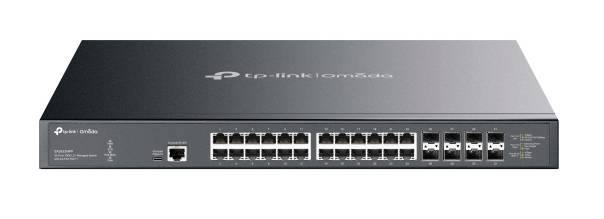

A TP-Link rackmount network switch shown front-on, with multiple Ethernet ports, a console port, and status indicator lights on the right.

Front view of a black rack-mount network device with a power input on the right and status indicators on the front panel.

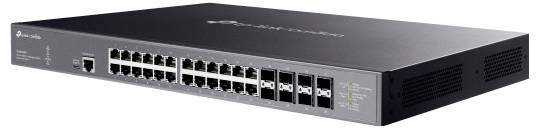

A gray rack-mounted network switch with multiple Ethernet ports and status lights, shown in a three-quarter view on a white background.

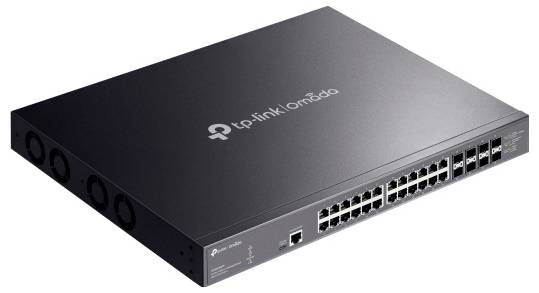

TP-Link Omada network switch with multiple Ethernet ports on a black metal chassis, shown in angled product view.

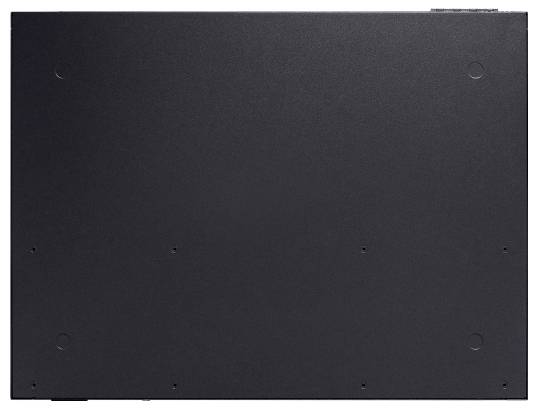

Dark rectangular metal panel with mounting holes, shown front-on against a white background.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada 32-port 10GE L2+ managed switch with 24-port PoE+

Managed L2+ Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45/USB Type-C.
10G support
MAC address table: 32000 entries Routing/switching capacity: 640 Gb/s.
Access control list
DIN rail rack mounting Stackable
AC Power over Ethernet (PoE)

Technical specifications

Form factor: DIN rail
Number of fans: 4 fans
Energy source: AC

Product type: Managed network switch

Working principle: Managed switch

IEEE 802.3af PoE: 24

SFP+ ports: 8 x

No. of 100 Mbps/1Gbps/10Gbps ports: 24 x

Router features: PoE

MAC addresses: 32000

Width: 440 mm

Height: 44 mm

Depth: 330 mm

Type: Omada SX3832MPP V1

Factory colour: Black

Port: 24 ports

Material (details): Metal

Power consumption (ON): 953.7 W

Power supply (details): 110 - 240 V

Safety: HTTPS
SNMP
SNMPv2
SNMPv3
SSH
SSL/TLS

UKCA: yes

Screws included: yes

Fast Ethernet (copper) ports quantity: 24

Fanless: no

Operating temperature (T-T): -5 - 45 °C

Installed SFP+ modules quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 770 W

Packet buffer memory: 24 MB

Storage relative humidity (H-H): 5 - 90 %

Auto-negotiation: yes

Switching capacity: 640 Gbit/s

Heat dissipation: 3444.7 BTU/h

Rack mount kit: yes

ARP inspection: yes

Jumbo frames: 9

Power over Ethernet (PoE) power per port: 90 W

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

Static route: yes

Configuring Location Settings (CLI): yes

Number of queues: 8

Web-based management: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

Gigabit Ethernet (copper) ports quantity: 24

Quick start guide: yes

Cloud-managed: yes

IPv4 routes: 48

IPv6 routes: 48

Firmware upgradeable: yes

2.5G Ethernet (copper) ports quantity: 24

10G Ethernet (copper) ports quantity: 24

Power over Ethernet 4PPoE (PoE++) ports quantity: 24

Power saving mode (EEE): yes

Rack mounting: yes

MAC address table: 32000 Eintragungen

Rubber feet: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4000

Spanning tree protocol: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

DoS attack prevention: yes

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 240 Mpps

Mounting brackets included: yes

Power consumption (max): 1010.2 W

Power supply included: no

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799864 TP-LINK SX3832MPP Omada SX3832MPP V1 Managed network switch 24 ports PoE

Description

The TP-LINK Omada SX3832MPP V1 is a layer-2+ switch, which was specially developed for the requirements of modern network environments. With a switching capacity of 640 Gbit/s and a packet forwarding rate of 240 Mpps, this switch ensures a fast data transfer between several devices. It has a PoE budget of 770 W and supports 24 x 100/1000/2.5G/5G/10GBase-T PoE+ ports and 8 x 10Gb Ethernet SFP+ ports, providing flexibility for a variety of connectivity requirements. Equipped with advanced features such as VLAN support, port security and IPv6 interfaces, the SX3832MPP V1 is perfect for the efficient management of complex network configurations. Built-in fans provide optimum operating conditions, while a wide operating temperature range from -5°C to 45°C ensures reliable performance in different environments. The server-compatible design of the switch includes a metal enclosure for durability and compliance with several standards. With 32 MB of flash memory and 512 MB RAM, this switch is designed for high workloads and enables seamless management and monitoring over remote protocols. The TP-LINK Omada SX3832MPP V1 is Ideal for companies looking for a reliable network solution, and improves the control and efficiency

This text is machine translated.
