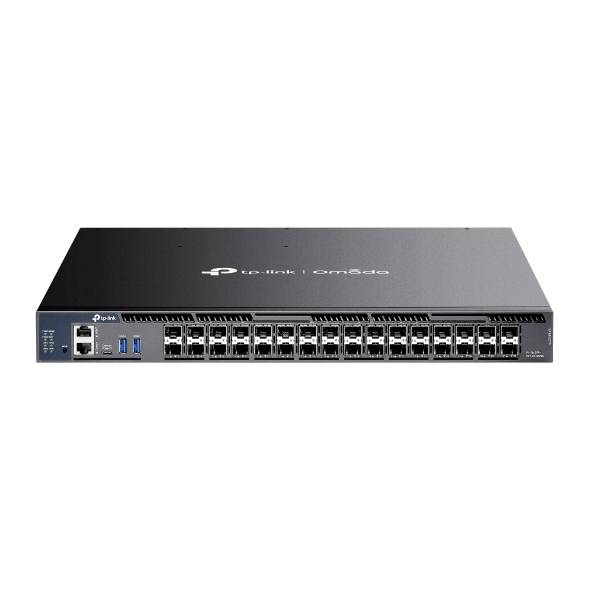

Front view of a TP-Link Omada network switch with multiple Ethernet ports and USB ports on a black rackmount device<br>

Front view of a TP-Link Omada network switch with multiple Ethernet ports and USB ports on a black rackmount device<br>

Front view of a black rack-mounted server with multiple cooling fans, storage bays, and power/network ports.

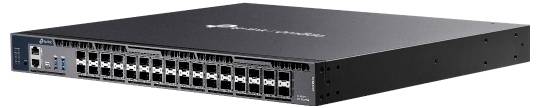

A black rack-mount network switch with many Ethernet ports on the front panel and a small status display, shown on a white background.

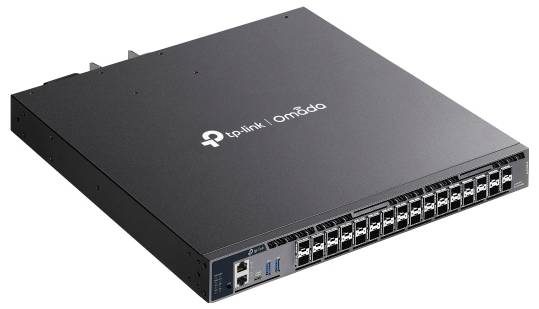

TP-Link Omada rackmount network switch with many Ethernet ports on the front panel<br>

1/4

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada SX6632YF network switch managed L2+/L3 black

Managed L2+/L3 Web-based management SNMPv1/v2c/v3
Quality of Service (QoS) support
Console port RJ-45
10G support
MAC address table: 128000 entries Routing/switching capacity: 820 Gb/s.
Access control list
Rack mounting Stackable
AC
This text is machine translated.

Technical specifications

Number of management ports: 1 pieces(s)
Number of fans: 4 fans
Energy source: AC

Product type: Managed network switch

Working principle: Managed switch

Ethernet ports: 26

SFP ports: 6 x

Width: 440 mm

Height: 44 mm

Depth: 380 mm

Type: Omada SX6632YF V1

Factory colour: Black

Port: 26 ports

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Packet buffer memory: 8 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 820 Gbit/s

Rack mount kit: yes

ARP inspection: yes

Jumbo frames: 9000

SFP module slots quantity: 6

SFP+ module slots quantity: 26

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Static port security: yes

USB Type-C ports quantity: 1

Web-based management: yes

Access Control List (ACL): yes

IP routing: yes

Quick start guide: yes

Cloud-managed: yes

USB Type-A ports quantity: 2

Rack mounting: yes

Number of power supply units: 2

MAC address table: 128000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 610.1 Mpps

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799807 TP-LINK SX6632YF Omada SX6632YF V1 Managed network switch 26 ports
