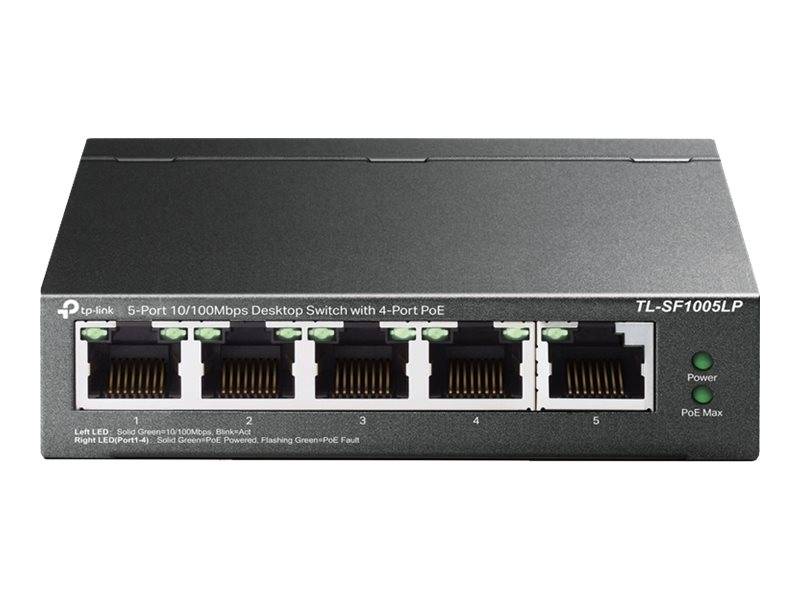

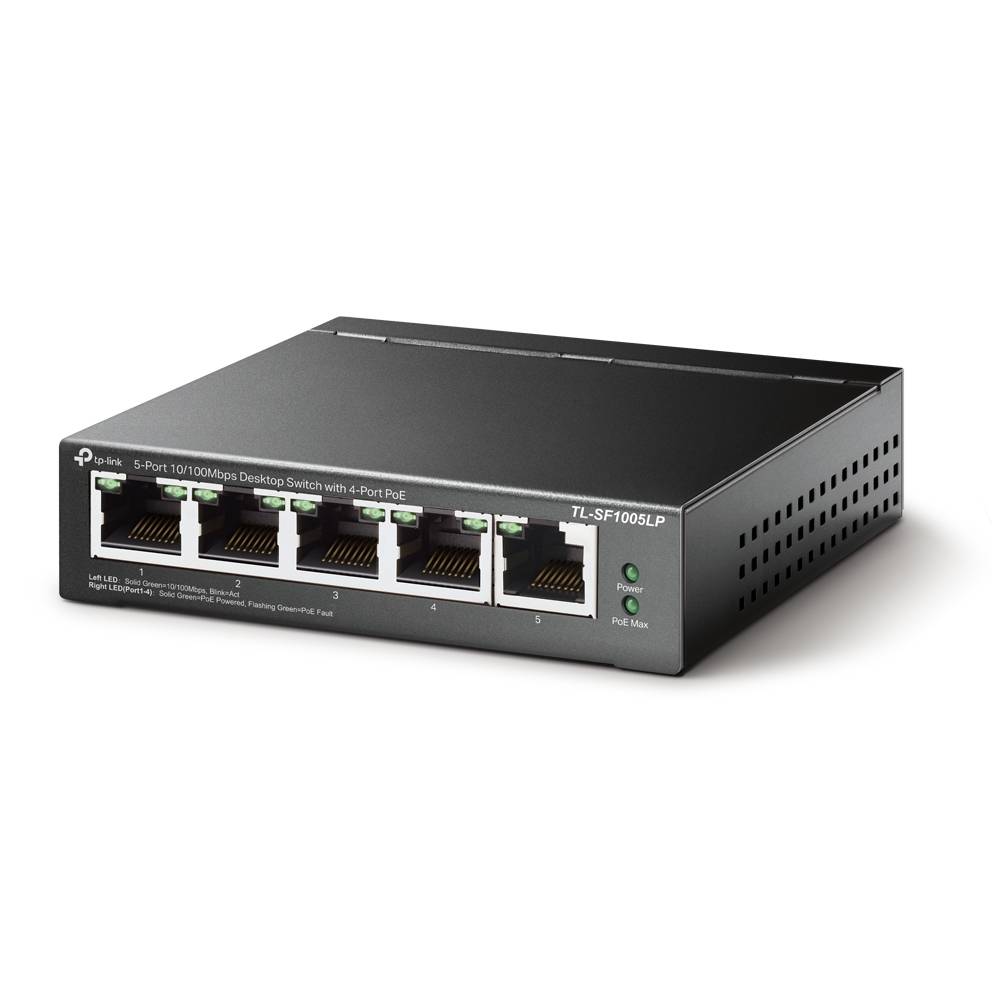

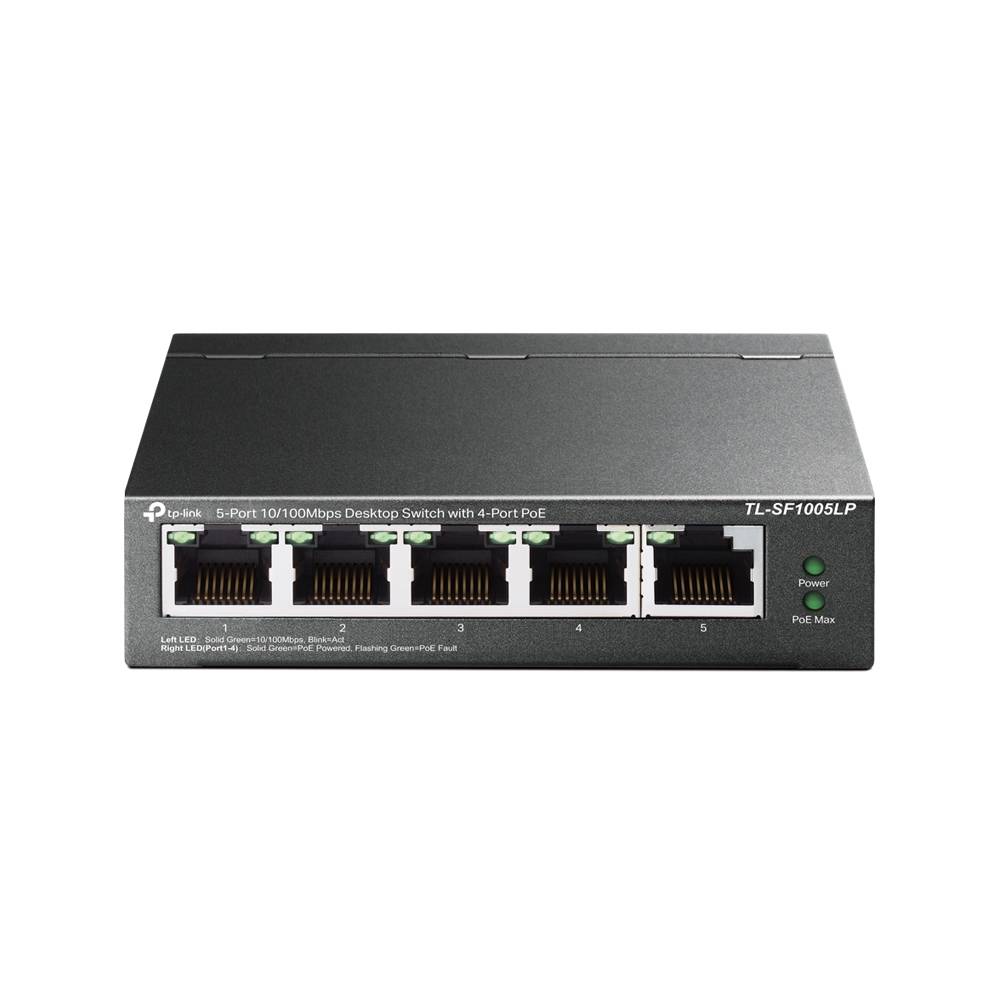

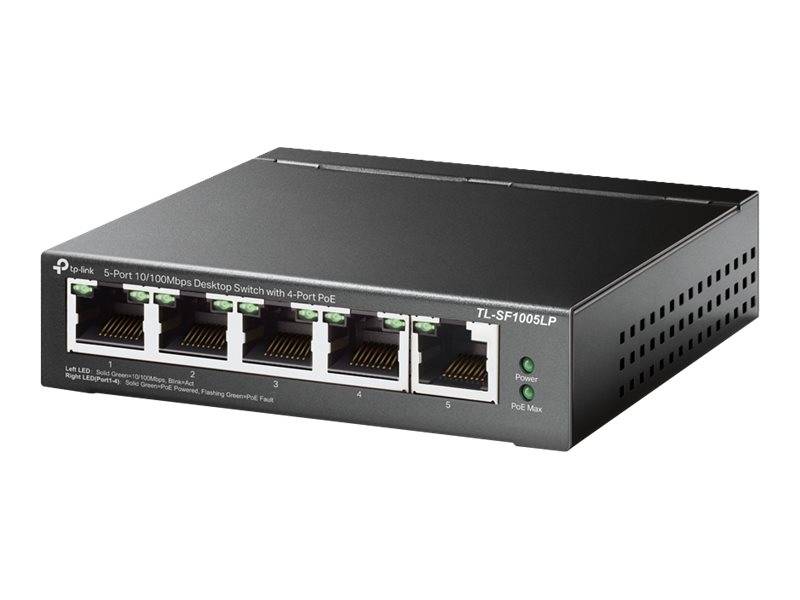

TP-LINK TL-SF1005LP - V1 - switch - unmanaged - 5 x 10/100 (4 PoE)
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK TL-SF1005LP - V1 - switch - unmanaged - 5 x 10/100 (4 PoE)
- RJ45 ports with 5× 10/100 Mbit/s.
- 4 PoE-ports transmit data and power simultaneously via a single cable
- Works with IEEE 802.3af-compatible PoE devices
- Up to 250 m range in the extension mode for a simultaneous transfer of data and power
- The priority mode ensures a high priority of ports 1-2, in order to ensure the quality of sensitive applications
- Supports a PoE power of up to 41 W for all PoE ports
- Plug & Play without configuration
Technical specifications
- Desktop, wall mountable - PoE (41 W)
- Product type
Network switch
- LAN transfer rate
100 MBit/s
- Transfer rate
1 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- IEEE 802.3af PoE
4
- 10/100 Mbps ports
5 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
2000
- Weight
0.73 kg
- Width
100 mm
- Height
25 mm
- Depth
98 mm
- Type
Switch
- Interfaces
RJ45
- Factory colour
Black
- Power supply (details)
220 V
- Input voltage
53.5 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3738783 TP-LINK TL-SF1005LP - V1 - switch - unmanaged - 5 x 10/100 (4 PoE)
Description
In the extended-mode the PoE-transmission distance reaches up to 250 m - Ideal for the use of IP-cameras in large areas. The quality of sensitive applications such as video surveillance in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch priority mode is enabled. If the total power consumption exceeds 41 W, the intelligent power management reduces the port power with lower priority. This ensures the power supply of the ports with high priority and protects the device against overload. It detects and automatically delivers the power required for your PoE devices and simultaneously protects your PoE and non-PoE devices against damage. The interior components of the TL-SF1005LP are protected by a high-quality metal housing to ensure a long product life. The TL-SF1005LP has passed a series of stringent reliability tests and offers switch performance that you can rely on.
This text is machine translated.
This text is machine translated.
Features
- TP-LINK TL-SF1005LP - V1 - switch - 5 connections - unmanaged
- Device type : switch - 5 connections - unmanaged
- Subtype : Fast Ethernet
- Ports : 5 x 10/100 (4 PoE)
- Power over Ethernet (PoE) : PoE
- PoE budget : 41 W.
- Performance : Packet Forwarding Rate: 0.744 Mpps
- Switching capacity 1 Gbps
- Size of the MAC address table : 2000 entries
- Jumbo framework support : 2KB
- Features : Flow Control, Auto Negotiation, Auto Uplink (Auto MDI/MDI-X), Store-and-Forward, No Fan, Metal housing, priority operation, extension mode, security slot (compatible with Kensington slot), intelligent Power management
- Product certifications : IEEE 802.3af, IEEE 802.3x
- Dimensions (width x depth x height): 10 cm x 9.8 cm x 2.5 cm
Scope of delivery
- TP-LINK TL-SF1005LP V1External power adapter
