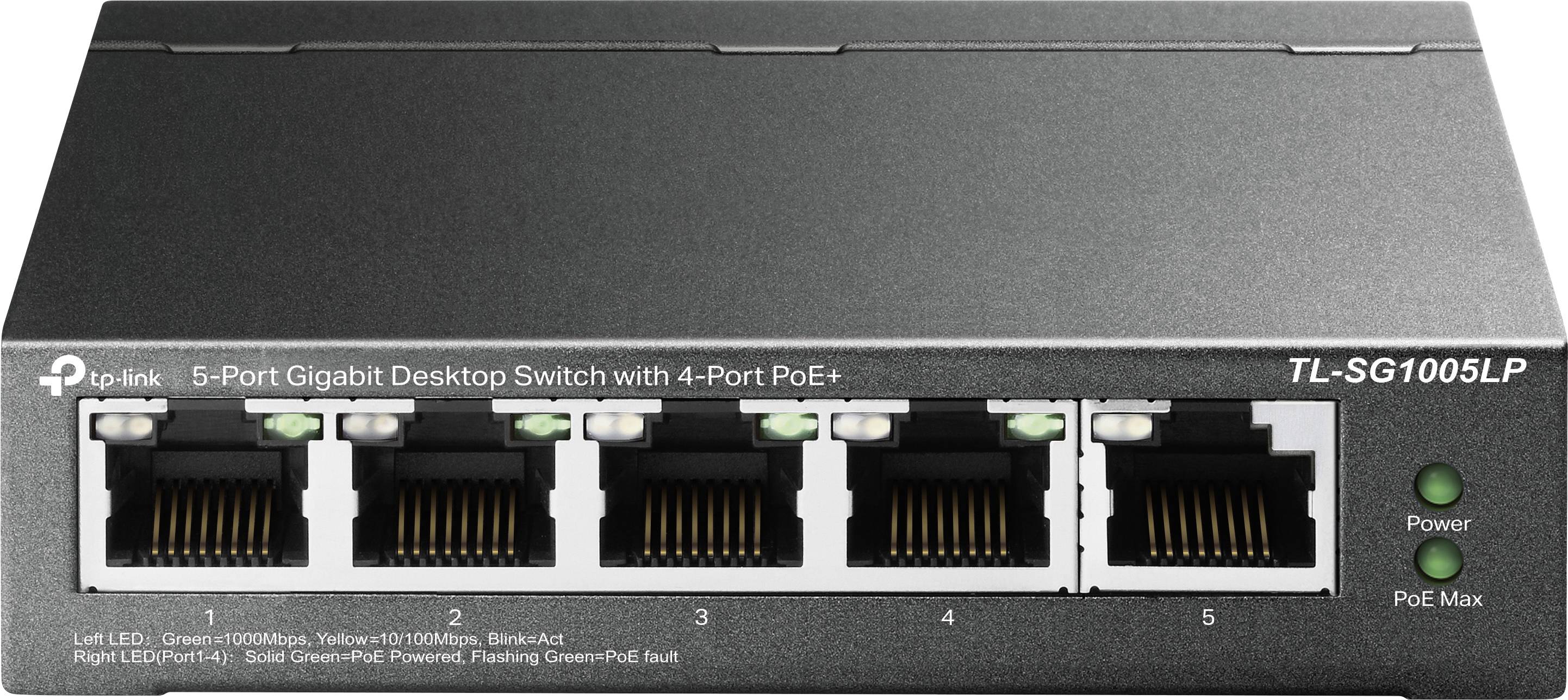

TP-LINK TL-SG1005LP TL-SG1005LP - V1 Network switch 5 ports 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Professional 5-port gigabit switch with 4 PoE + ports
Highlights & Details
- 5 × 10/100/1000 Mbps RJ45 portsTransmits data and power via a single cable with four PoE + portsWorks with IEEE 802.3af / with compatible PDS802.1p/DSCP QoS enables smooth, latency-sensitive data trafficSupports PoE power of up to 30 W for each PoE portSupports PoE power up to 40 W for all PoE ports *Plug and Play, no configuration and installation required
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- 10/100/1000 Mbps ports
5 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- Router features
PoE
- Power supply (LOV)
mains-powered
- MAC addresses
2000
- Weight
1.00
- Width
99.8 mm
- Height
25 mm
- Depth
98 mm
- Type
TL-SG1005LP - V1
- Interfaces
RJ45
- Factory colour
Black
- Port
5 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2368559 TP-LINK TL-SG1005LP TL-SG1005LP - V1 Network switch 5 ports 10 / 100 / 1000 MBit/s PoE
Description
Special 4-port PoE + switch (40 W budget) for numerous applicationsThe 802.3af / at PoE + standard compliance supports up to 30 W at each PoE port. The total 40W PoE power budget * for the 4 × PoE ports opens up a wide range of applications, including office, dorm, and small business monitoring. It is fully compatible with IP cameras, access points, IP phones, computers, printers and more.
