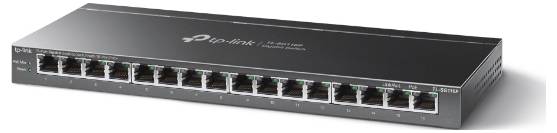

Black TP-Link network switch with 16 Ethernet ports and status LEDs on the front panel, shown in perspective on a white background.

1/2

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TP-LINK TL-SG116P Network-Switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Unmanaged
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 16
Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Routing/switching capacity: 32 Gb/s.
Stackable
Power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Product type: Network switch

Transfer rate: 32 Gbit/s

Working principle: Unmanaged switch

Ethernet ports: 16

Width: 286 mm

Height: 25.4 mm

Depth: 111.7 mm

Type: TL-SG116P V1

Factory colour: Black

Material (details): Metal

Power consumption (ON): 11.72 W

Power supply (details): 220 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Packet buffer memory: 4.1 MB

Storage relative humidity (H-H): 5 - 90 %

Wall mountable: yes

Auto-negotiation: yes

Switching capacity: 32 Gbit/s

Heat dissipation: 490.55 BTU/h

Loop protection: yes

Jumbo frames: 9000

Cable length detection: yes

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Broadcast storm control: yes

Number of queues: 4

Store-and-forward: yes

Rate limiting: yes

Gigabit Ethernet (copper) ports quantity: 16

Quick start guide: yes

Full duplex: yes

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 32

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 2 kg

Forwarding rate: 23.81 Mpps

Power consumption (max): 144.28 W

Power supply included: yes
