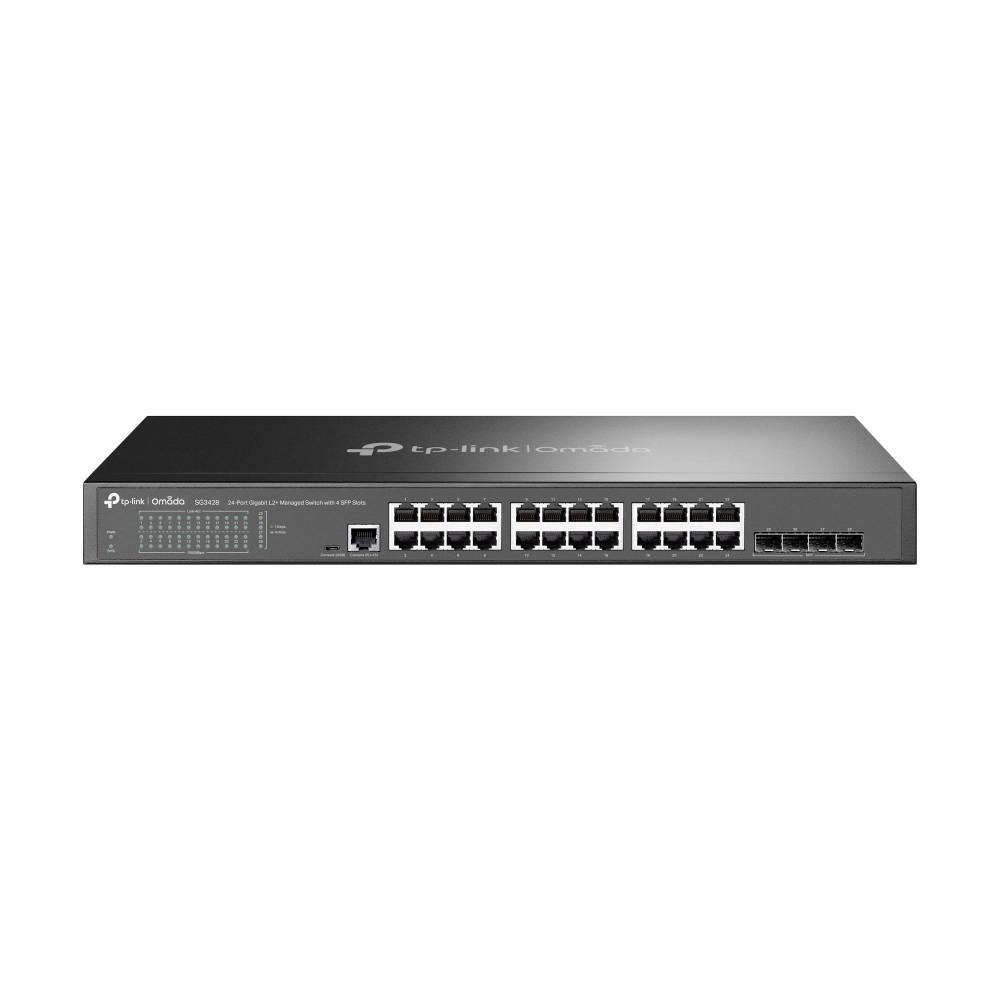

TP-LINK TL-SG3428 Network SFP switch 56 GBit/s
EAN:
Part number:
Item no:
TP-LINK Omada SG3428 network switch managed L2/L3 Gigabit Ethernet (10/100/1000) 1U black
Highlights & Details
- 24 10/100Mbit/s ports, 2 Gigabit ports and managed switch
- Advanced enterprise environment features based on IEEE802.1d, 802.1x, 802.1Q, 802.1p, IGMP snooping, SNMP and more
- Management via SNMP, Web, Telnet, and console
Technical specifications
- Form factor: 1U
- Number of fans: 0 fans
- Energy source: AC
- Product type
Network SFP switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
56 GBit/s
- Working principle
Managed switch
- Ethernet ports
24
- SFP ports
4 x
- MAC addresses
16000
- Width
440 mm
- Height
44 mm
- Depth
180 mm
- Type
TL-SG3428
- Factory colour
Black
- Max. ambient temperature
0 °C
- Min. ambient temperature
45 °C
- Power supply (details)
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 45 °C
- Basic switching RJ-45 Ethernet ports quantity
24
- Packet buffer memory
12 MB
- Number of static routes
48
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
56 Gbit/s
- Heat dissipation
70.3 BTU/h
- Loop protection
yes
- BPDU filtering/protection
yes
- IP-MAC-Port binding
yes
- ARP inspection
yes
- Jumbo frames
9000
- SFP module slots quantity
4
- Flow control support
yes
- Power over Ethernet (PoE)
no
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Static port security
yes
- GARP VLAN Registration Protocol (GVRP)
yes
- Static route
yes
- Policy-based routing
yes
- Configuring Location Settings (CLI)
yes
- Web-based management
yes
- Store-and-forward
yes
- Access Control List (ACL)
yes
- System event log
yes
- Rate limiting
yes
- IP routing
yes
- Gigabit Ethernet (copper) ports quantity
24
- Quick start guide
yes
- Cloud-managed
yes
- IPv4 routes
48
- IPv6 routes
48
- Rack mounting
yes
- MAC address table
16000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Number of VLANs
4000
- Spanning tree protocol
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- 10G support
no
- Storage temperature (T-T)
-40 - 70 °C
- Forwarding rate
41.66 Mpps
- Power consumption (max)
20.6 W
- Power supply included
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763088 TP-LINK TL-SG3428 Network SFP switch 56 GBit/s
Description
The TL-SL3428 by TP-LINK is designed for the needs of smaller and medium-sized enterprises and combines basic layer 2-lite management functions like 802.1Q-VLAN, 802.1p-QoS and ACL (access control list). It offers high performance with 24 10/100Mbit/s ports and 2 10/100 Mbit/s ports, in order to provide maximum throughput for your business networks. In addition, the switch TL-SL3428 is also equipped with 2 gigabit SFP slots, so that you have greater network flexibility. Finally, the TP-LINK TL-SL3428 L2 switch is equipped with advanced security and management features, such as 802.1X port authentication, storm control, port security, quality of service (QoS), STP/RSTP/MSTP and IGMP snooping to provide improved traffic management functions and greater reliability. The easy-to-use web management interfaces along with CLI, SNMP and RMON provide faster installation and configuration with less downtime.
This text is machine translated.
This text is machine translated.
Features
- Managed L2/L3 Web-based management SNMPv1/v2c/v3, SNTP
- Quality of Service (QoS) Support Site Settings Configuration (CLI)
- Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45/micro USB
- MAC address table: 16000 entries Routing/switching capacity: 56 Gb/s.
- Access control list
- 1U Rack-mounting
- AC
