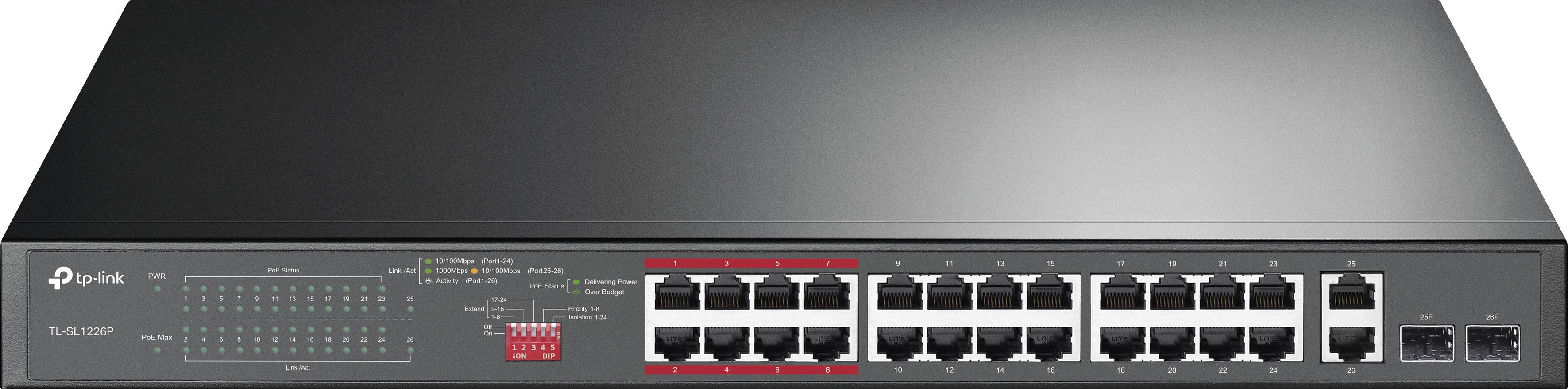

TP-LINK TL-SL1226P TL-SL1226P Network switch 24 + 2 ports 10 / 100 MBit/s PoE
EAN:
Part number:
Item no:
Professional high-performance PoE + switch with 24 connections
Highlights & Details
- 24 × PoE + 10/100 Mbps RJ45 ports, 2 × Gigabit RJ45 ports and 2 × Combo Gigabit SFP slotsHigh PoE power budget of up to 30W for each PoE port and 250W for all PoE ports *Up to 250m data and power PoE transmission range in extend mode **, ideal for surveillance systemsPriority mode ensures high priority of ports 1–8 to ensure the quality of sensitive applications such as video monitorsIsolation mode allows one-click isolation of client traffic for greater security and performancePlug and Play without the need for configuration and installation
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
24
- SFP ports
2 x
- 10/100 Mbps ports
24 x
- 10/100/1000 Mbps ports
2 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- Router features
PoE
- Power supply (LOV)
mains-powered
- MAC addresses
8000
- Weight
2.974 kg
- Width
440 mm
- Height
44 mm
- Depth
180 mm
- Type
TL-SL1226P
- Interfaces
RJ45
SFP
- Factory colour
Black
- Port
24 + 2 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2368551 TP-LINK TL-SL1226P TL-SL1226P Network switch 24 + 2 ports 10 / 100 MBit/s PoE
Description
Special PoE + switch with 24 ports for a wide range of applications with a PoE budget of 250 W.The 802.3af / at PoE + standard compliance supports up to 30 W at each PoE port. The total PoE power budget of 250W * for the 24 × PoE ports offers a wide range of applications, including Surveillance, offices, dormitories and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
