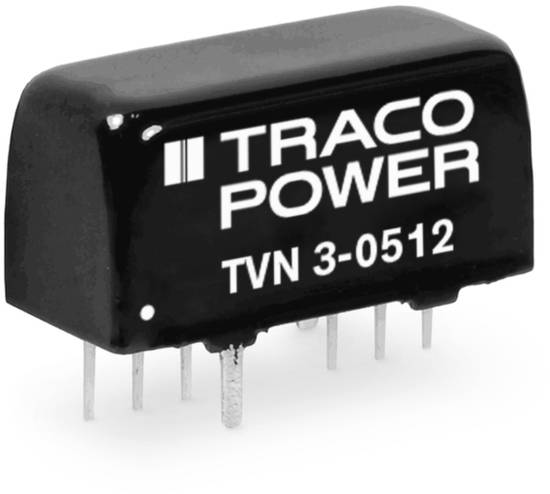

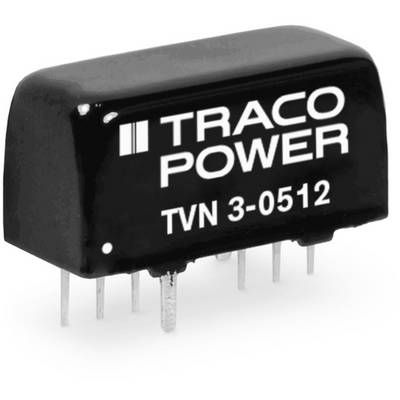

TracoPower DC/DC converter (print) 24 V DC 100 mA 3 W No. of outputs: 2 x Content 10 pc(s)
Item no:
Datasheet (PDF)
Total (€ 35.71 / piece)
€ 357.14
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TVN 3-2423
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
- Efficiency (max.)
85 %
3 W
- Insulation voltage
1600 V DC
- Enclosure
SIL 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 9.6 x 21.8 x 15.3 mm
- Height
15.3 mm
- Length
9.6 mm
- Width
21.8 mm
- Output voltage (max.)
15 V DC
-15 V DC
- Weight
5.9 g
- Content
10 pc(s)
Documents & Downloads
Datasheet
Datasheet 2790157 TracoPower DC/DC converter (print) 24 V DC 100 mA 3 W No. of outputs: 2 x Content 10 pc(s)
Datasheet 2790157 TracoPower DC/DC converter (print) 24 V DC 100 mA 3 W No. of outputs: 2 x Content 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2790157 TracoPower DC/DC converter (print) 24 V DC 100 mA 3 W No. of outputs: 2 x Content 10 pc(s)
Warranty Terms
Warranty Terms 2790157 TracoPower DC/DC converter (print) 24 V DC 100 mA 3 W No. of outputs: 2 x Content 10 pc(s)
Description
2:1 input range, compact SIL-8 metal housing. Low ripple of 10 mVpp type. Regulated output, input/output insulation 1600 V/DC. Short-circuit protection, input filter according to EN 55032, class B with ext. Components.
