Buy TracoPower TBL 015-105 Rail mounted PSU (DIN) 5 V DC 2.4 A 12 W No. of outputs:1 x Content 1 pc(s)

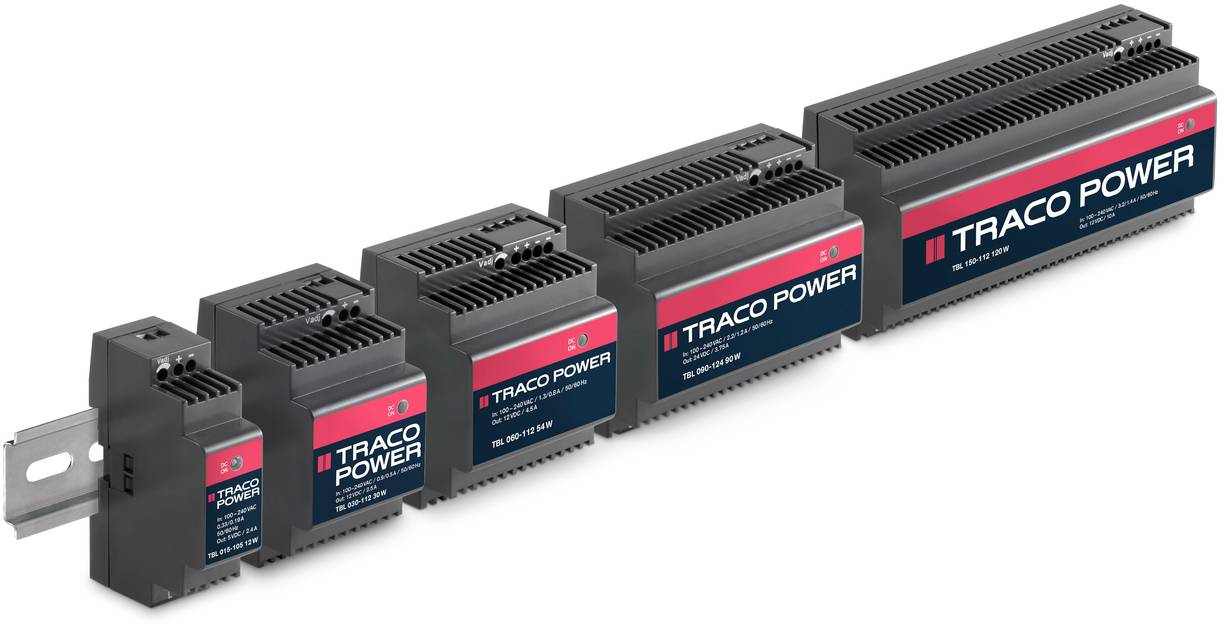

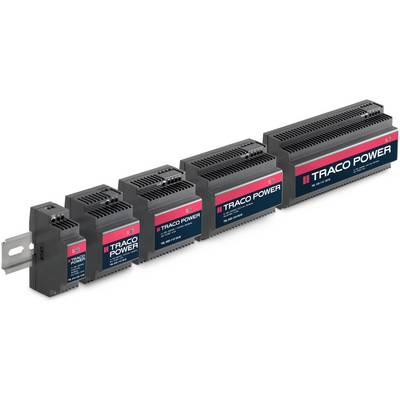

Five stacked TRACO POWER power supplies in various sizes, from small to large.

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 52.09 / piece)

€ 52.09

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 5 V DC

Input voltage: 85 – 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 2.4 A

Output current (max.) - rounded: 2.4 A

: 12 W

Phases: 1

Output voltage (nominal): 5 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 26.3 x 89.5 x 59.5 mm

Weight: 100 g

Output voltage (max.): 5.2 V DC

Output voltage (min.): 5 V DC

Manufacturer part #: TBL 015-105

Content: 1 pc(s)

Width: 26.3 mm

Height: 89.5 mm

Type: TBL 015-105

Depth: 59.5 mm

: 12 W

Connections: Screw terminals

Output current (details): 2.4 A

Documents & Downloads

Datasheet

Datasheet 511941 TracoPower TBL 015-105 Rail mounted PSU (DIN) 5 V DC 2.4 A 12 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 511941 TracoPower TBL 015-105 Rail mounted PSU (DIN) 5 V DC 2.4 A 12 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 511941 TracoPower TBL 015-105 Rail mounted PSU (DIN) 5 V DC 2.4 A 12 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 511941 TracoPower TBL 015-105 Rail mounted PSU (DIN) 5 V DC 2.4 A 12 W No. of outputs:1 x Content 1 pc(s)

Description

TBL 015-105 power supply with 5V DC 2.4A 12W output from TracoPower's TBL series of small DIN rail power supplies designed especially for building and factory automation.

The ultra-compact low profile case fits in standardised wall mounted control panels used in the building automation industry. The power supply can be operated at full load across an ambient temperature range of –25°C to +60°C without need of additional cooling.

Universal input voltage range and full compliance with all important safety and EMC standards qualifies all TBL series power supplies for worldwide markets. For commercial and residential applications requiring safety class ll the models up to 60 Watt are approved to UL 1310.
