Buy TracoPower TBL 015-112 Rail mounted PSU (DIN) 12 V DC 1.25 A 15 W No. of outputs:1 x Content 1 pc(s)

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 60.50 / piece)

€ 60.50

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 12 V DC

Input voltage: 85 – 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 1.25 A

Output current (max.) - rounded: 1.25 A

: 15 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 12 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 26.3 x 89.5 x 59.5 mm

Weight: 100 g

Output voltage (max.): 16 V DC

Output voltage (min.): 12 V DC

Manufacturer part #: TBL 015-112

Content: 1 pc(s)

PSU features: Surge protection
Adjustable voltage output

Width: 26.3 mm

Height: 89.5 mm

Type: TBL 015-112

Depth: 59.5 mm

: 15 W

Output current (details): 1.25 A

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 511942 TracoPower TBL 015-112 Rail mounted PSU (DIN) 12 V DC 1.25 A 15 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 511942 TracoPower TBL 015-112 Rail mounted PSU (DIN) 12 V DC 1.25 A 15 W No. of outputs:1 x Content 1 pc(s)

Description

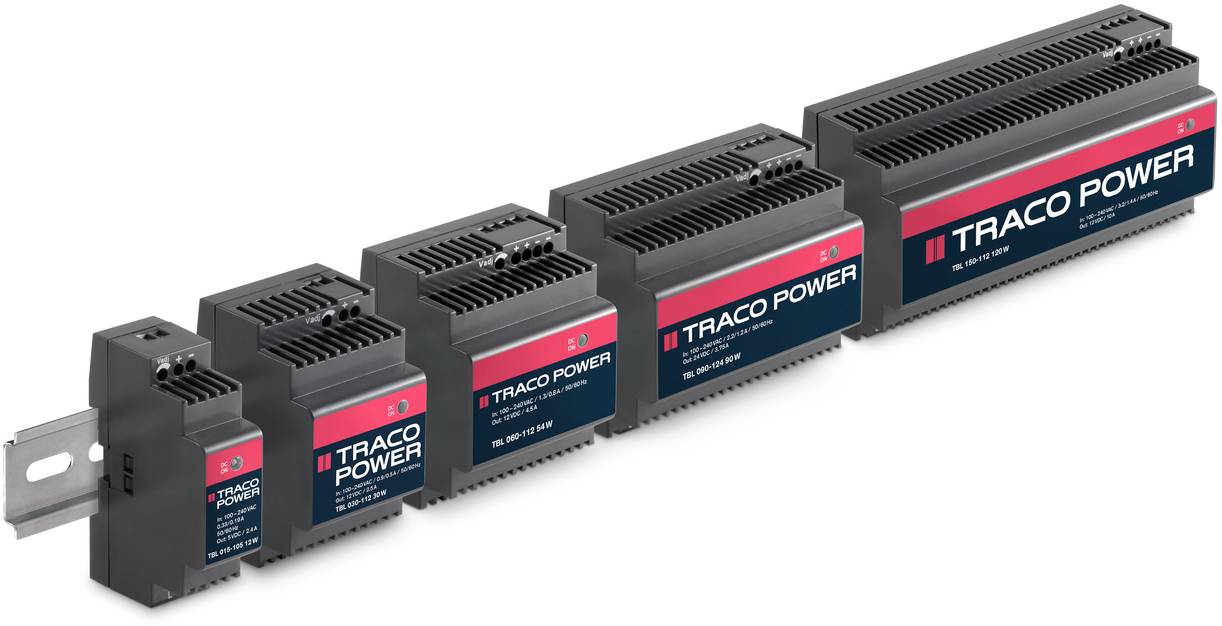

TBL 015-112 power supply with 12V DC 1.25A 15W output from TracoPower's TBL series of small DIN rail power supplies designed especially for building and factory automation.

The ultra-compact low profile case fits in standardised wall mounted control panels used in the building automation industry. The power supply can be operated at full load across an ambient temperature range of –25°C to +60°C without need of additional cooling.

Universal input voltage range and full compliance with all important safety and EMC standards qualifies all TBL series power supplies for worldwide markets. For commercial and residential applications requiring safety class ll the models up to 60 Watt are approved to UL 1310.
