Buy TracoPower TBL 015-124 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

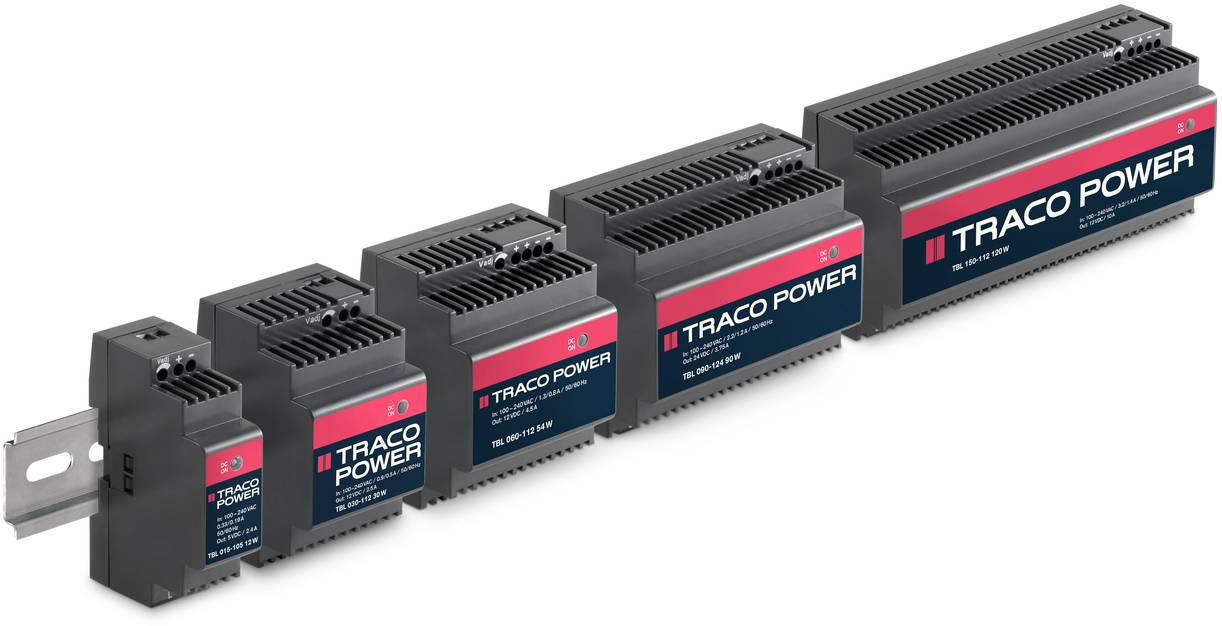

Five TRACO POWER switch-mode power supplies lined up in various sizes; each with a grey housing and red labelling.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

25 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 58.82 / piece)

€ 58.82

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 24 V DC

Input voltage: 85 – 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 0.63 A

Output current (max.) - rounded: 630 mA

: 15 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 26.3 x 89.5 x 59.5 mm

Weight: 100 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: TBL 015-124

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 26.3 mm

Height: 89.5 mm

Type: TBL 015-124

Depth: 59.5 mm

: 15 W

Output current (details): 0.63 A

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 511943 TracoPower TBL 015-124 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 511943 TracoPower TBL 015-124 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 511943 TracoPower TBL 015-124 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

Description

TBL 015-124 power supply with 24V DC 0.63A 15W output from TracoPower's TBL series of small DIN rail power supplies designed especially for building and factory automation.

The ultra-compact low profile case fits in standardised wall mounted control panels used in the building automation industry. The power supply can be operated at full load across an ambient temperature range of –25°C to +60°C without need of additional cooling.

Universal input voltage range and full compliance with all important safety and EMC standards qualifies all TBL series power supplies for worldwide markets. For commercial and residential applications requiring safety class ll the models up to 60 Watt are approved to UL 1310.
