TracoPower TBLC 15-105 SMPSU 5.5 V DC 2.4 A 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 3 Piece(s) available
Highlights & Details

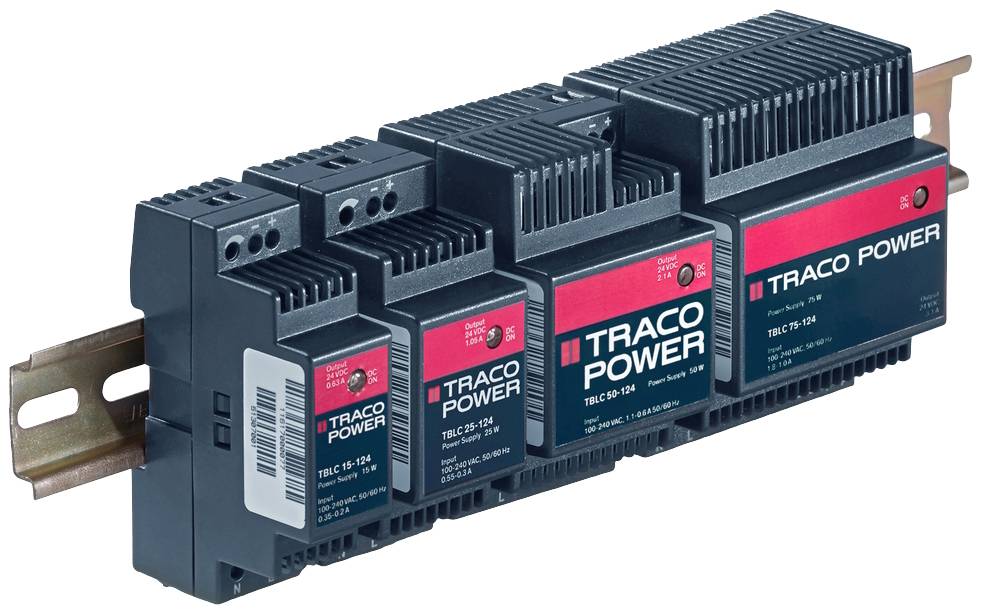

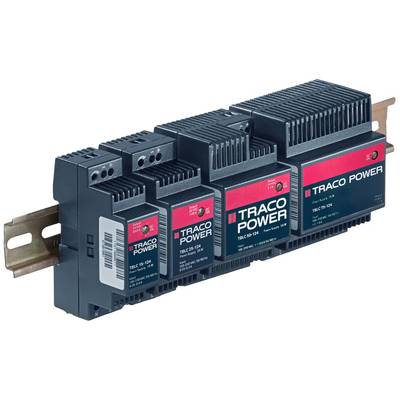

AC/DC switching power supply, TBLC-Series
- Output 5.5 V DC / 2.4 A
- Power 15 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
2.4 A
- Output current (max.) - rounded
2.4 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 59.5 x 27 x 89.5 mm
- Output voltage (max.)
5.5 V DC
- Connection
Screw terminal
15 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
55 °C
- Operating temperature (min.)
-25 °C
- Weight
80 g
- Width
27 mm
- Height
89.5 mm
- Length
59.5 mm
- Type
TBLC 15-105
- Output current (min.)
0 mA
- Output voltage (min.)
5 V DC
Documents & Downloads
Datasheet
Datasheet 1554647 TracoPower TBLC 15-105 SMPSU 5.5 V DC 2.4 A 15 W
Datasheet 1554647 TracoPower TBLC 15-105 SMPSU 5.5 V DC 2.4 A 15 W
Warranty Terms
Warranty Terms 1554647 TracoPower TBLC 15-105 SMPSU 5.5 V DC 2.4 A 15 W
