TracoPower TBLC 50-112 SMPSU 16 V DC 4 A 50 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Only 3 Piece(s) available
Highlights & Details

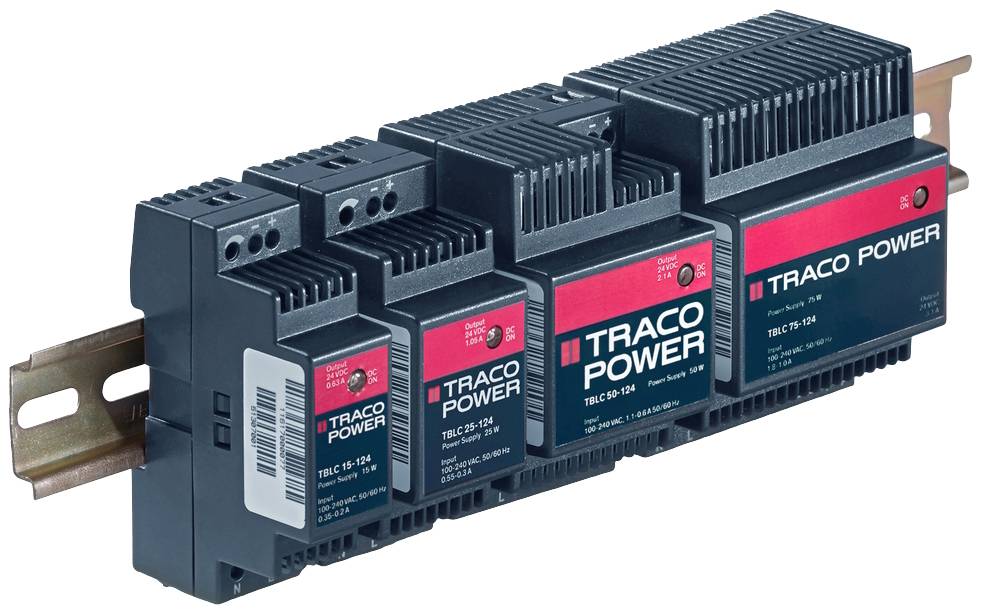

AC/DC switching power supply, TBLC-Series
- Output 16 V DC / 4 A
- Power 50 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
4 A
- Output current (max.) - rounded
4 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 59.5 x 54 x 89.5 mm
- Output voltage (max.)
16 V DC
- Connection
Screw terminal
50 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
55 °C
- Operating temperature (min.)
-25 °C
- Weight
180 g
- Width
54 mm
- Height
89.5 mm
- Length
59.5 mm
- Type
TBLC 50-112
- Output current (min.)
0 mA
- Output voltage (min.)
12 V DC
Documents & Downloads
Datasheet
Datasheet 1554649 TracoPower TBLC 50-112 SMPSU 16 V DC 4 A 50 W
Datasheet 1554649 TracoPower TBLC 50-112 SMPSU 16 V DC 4 A 50 W
User & Safety Instructions
User & Safety Instructions 1554649 TracoPower TBLC 50-112 SMPSU 16 V DC 4 A 50 W
Warranty Terms
Warranty Terms 1554649 TracoPower TBLC 50-112 SMPSU 16 V DC 4 A 50 W
