TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 4 Piece(s) available
Highlights & Details
TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
- Input 1-phase
- input voltage range 85 - 264 V/AC, 85 - 375 V/DC
- for applications in industry, office and living areas
- Ultra compact plastic housing
- can be snapped onto DIN rail
- Incl. Adapter for wall mounting
- adjustable output voltage
- DC-OK Signal
- low remaining ripple
- Overload and short-circuit protection
- Parallel operation possible
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
85 - 375 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 - 264 Vac, 85 - 375 V DC
- Input voltage (max.)
264 V AC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
24 W
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(W x H x D) 27 x 75 x 100 mm
- Weight
140 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Manufacturer part #
TCL 024-124C
- Content
1 pc(s)
- Width
27 mm
- Height
75 mm
- Type
TCL 024-124C
- Depth
100 mm
24 W
- Connections
Spring cage terminal
- Output rating
24 W
- Output current (details)
1 A
Documents & Downloads
Datasheet
Datasheet 510941 TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
Datasheet 510941 TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 510941 TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 510941 TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 510941 TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)
Description

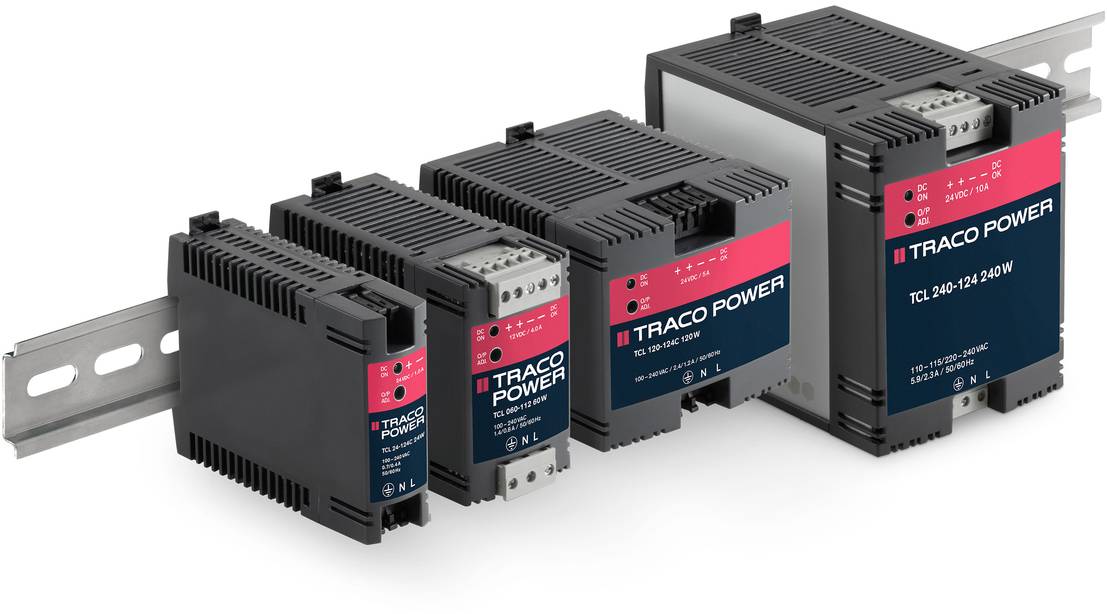

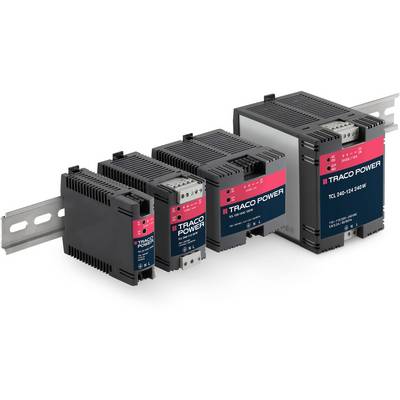

TCL 024-124C industrial DIN rail power supply with 24V DC 1A 24W output (Spring cage terminal type) - from TracoPower's high price/performance ratio TCL series.
With tightly regulated output voltage and high immunity against electrical disturbances on the mains, all power supplies from the TCL series provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.
The whole TCL series complies with all mayor safety standards for Europe (EN60950, EN50178), North America (UL/cUL60950, UL508C listed) or elsewhere in the world (with CB-Report IEC60950).
With tightly regulated output voltage and high immunity against electrical disturbances on the mains, all power supplies from the TCL series provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.
The whole TCL series complies with all mayor safety standards for Europe (EN60950, EN50178), North America (UL/cUL60950, UL508C listed) or elsewhere in the world (with CB-Report IEC60950).
Features
- For Industrial, Office and Residential Application
- Ultracompact Plastic Housing
- Connection by Spring Clamp Terminals or plugable Screw Terminals
- Reliable snap-on Mounting on DIN-Rails
- Adapter for Wall Mounting
- Universal Input 85-264 VAC, 50/60 Hz
- Output Voltage adjustable
- Power Good Signal
- Low Ripple and Noise
- Overload and Short-Circuit Protection
- Parallel Operation possible
- Worldwide Safety Approvals
- Redundancy Module
- 3 Year Product Warranty
Hints
No DIN rail supplied.
