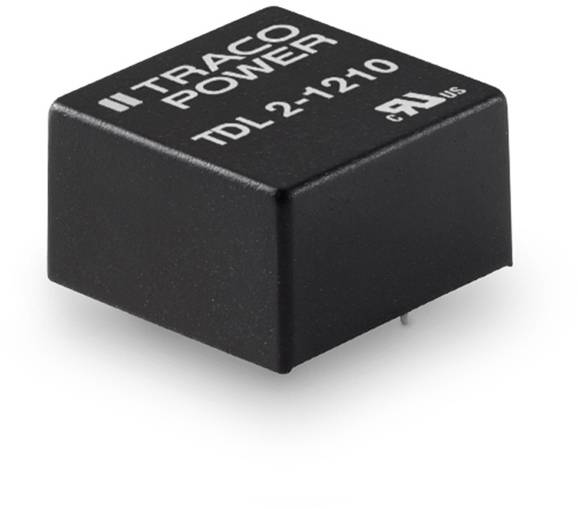

TracoPower TDL 2-2412 DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 20.16
30
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 20.16 / piece)
€ 201.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TDL 2-2412
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
167 mA
- Output current (max.) - rounded
167 mA
- Efficiency (max.)
86 %
2 W
- Insulation voltage
1500 V DC
- Enclosure
DIP
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 14 x 11.1 x 14 mm
- Height
14 mm
- Length
14 mm
- Width
11.1 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Weight
3.9 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370173 TracoPower TDL 2-2412 DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370173 TracoPower TDL 2-2412 DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370173 TracoPower TDL 2-2412 DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370173 TracoPower TDL 2-2412 DC/DC converter (print) 24 V DC 12 V DC 167 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact 2 W converter in DIP housing, E/A-insulation 1500 V/DC, regulated outputs, 2:1 input range, short-circuit proof.
