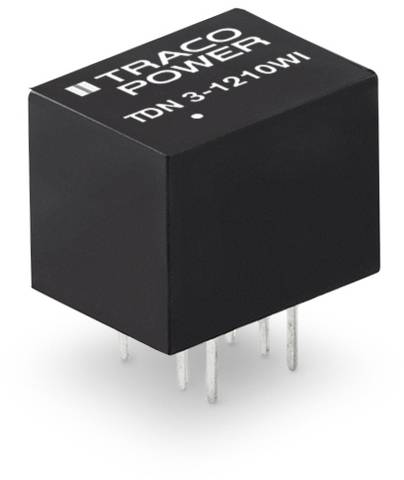

TracoPower TDN 3-4811WI DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 23.52
30
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 23.52 / piece)
€ 235.20
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TDN 3-4811WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
80 %
3 W
- Insulation voltage
1600 V DC
- Enclosure
DIP
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 10.2 x 9.1 x 13.2 mm
- Height
13.2 mm
- Length
10.2 mm
- Width
9.1 mm
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
2.7 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3372814 TracoPower TDN 3-4811WI DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372814 TracoPower TDN 3-4811WI DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3372814 TracoPower TDN 3-4811WI DC/DC converter (print) 48 V DC 5 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact 3 W converter in DIP housing, I/O insulation 1600 V/DC, regulated outputs, 4:1 input range, short-circuit proof.
