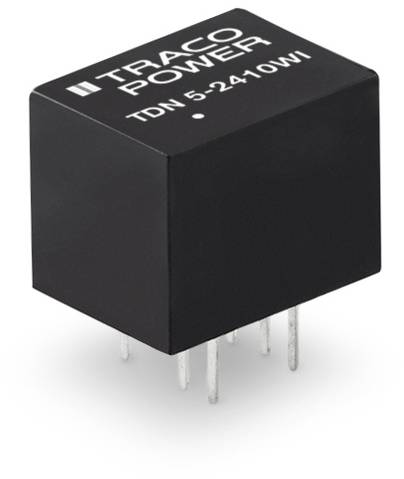

TracoPower TDN 5-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 27.72
30
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 27.72 / piece)
€ 277.20
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TDN 5-4810WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
3.3 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
76 %
5 W
- Insulation voltage
1600 V DC
- Enclosure
DIP
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 13.2 x 10.2 x 9.1 mm
- Height
9.1 mm
- Length
13.2 mm
- Width
10.2 mm
- Output voltage (max.)
3.3 V DC
- Output voltage (min.)
3.3 V DC
- Weight
2.7 g
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3370229 TracoPower TDN 5-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370229 TracoPower TDN 5-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370229 TracoPower TDN 5-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370229 TracoPower TDN 5-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact 5 W converter in DIP housing, I/O insulation 1600 V/DC, regulated outputs, 4:1 input range, short-circuit proof.
