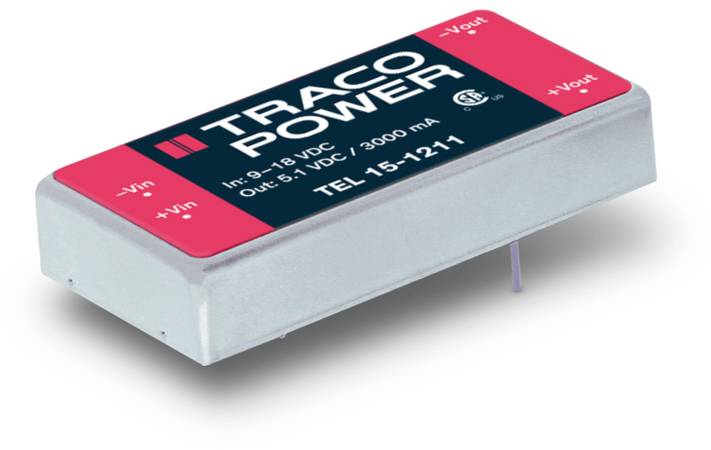

TracoPower TEL 15-4811 DC/DC converter (print) 48 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 33.61 / piece)
€ 336.10
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEL 15-4811
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
5.1 V DC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Efficiency (max.)
81 %
15 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 16.2 x 25.4 x 50.8 mm
- Height
50.8 mm
- Length
16.2 mm
- Width
25.4 mm
- Output voltage (max.)
5.1 V DC
- Output voltage (min.)
5.1 V DC
- Weight
32 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370293 TracoPower TEL 15-4811 DC/DC converter (print) 48 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370293 TracoPower TEL 15-4811 DC/DC converter (print) 48 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370293 TracoPower TEL 15-4811 DC/DC converter (print) 48 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370293 TracoPower TEL 15-4811 DC/DC converter (print) 48 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Description
15 W converter in 5.08 x 2.54 cm (2" x 1") housing, E/A-insulation 1500 V/DC, 2:1 input range, industry-standard pinning, short-circuit proof.
