Buy TracoPower TEL 15-4813WIN DC/DC converter 15 V DC 1.0 A 15 W

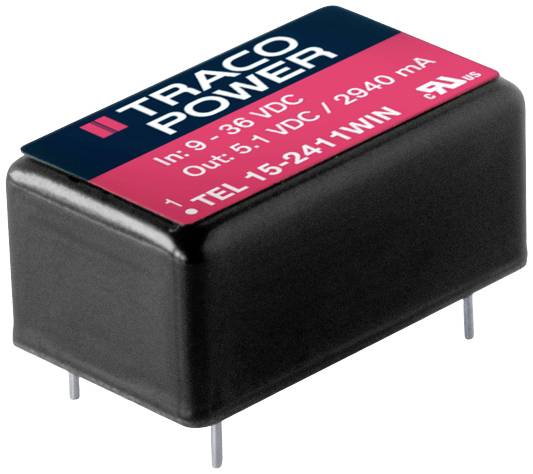

A rectangular electronic component with the label 'Traco Power'. Input range: 9-36 VDC. Output: 5 VDC / 2940 mA.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 34.45 / piece)

€ 344.50

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

DC/DC converter, TEL 15WIN series

Output 15 V DC / 1.0 A
Power 15 W

Technical specifications

Product type: DC/DC converter

Input voltage (max.): 75 V DC

Max. output current: 1.0 A

Output current (max.) - rounded: 1 A

Min. input voltage: 18 V DC

Dim: (L x W x H) 23.80 x 13.70 x 10.20 mm

Output voltage (max.): 15 V DC

: 15 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): +85 °C

Operating temperature (min.): -40 °C

Weight: 8.8 g

Width: 13.70 mm

Height: 10.20 mm

Length: 23.80 mm

Type: TEL 15-4813WIN

Documents & Downloads

Datasheet

Datasheet 3373074 TracoPower TEL 15-4813WIN DC/DC converter 15 V DC 1.0 A 15 W

User & Safety Instructions

User & Safety Instructions 3373074 TracoPower TEL 15-4813WIN DC/DC converter 15 V DC 1.0 A 15 W

Warranty Terms

Warranty Terms 3373074 TracoPower TEL 15-4813WIN DC/DC converter 15 V DC 1.0 A 15 W

Description

The DESIGN of the TEL 15WIN series combines current specifications in terms of dimensions, reliability and cost efficiency. These DC/DC converters are housed in ultra-compact, robust DIL-16 metal housings. Efficiency of up to 87% allows reliable operation with full load at an ambient temperature of up to +55°C. This series is rounded off by an integrated filter according to EN 55032, class A and a wide 4:1 input range. The TEL 15WIN series offers a low-cost solution for applications in industry, communications and IT areas.
