Buy TracoPower TEL 15-4822N-HS DC/DC converter 12 V DC 0.6 A 15 W

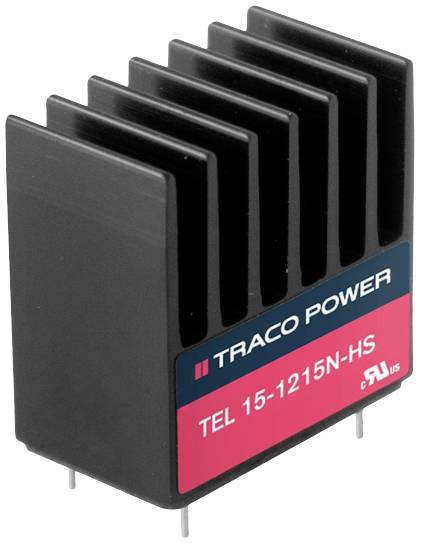

Black heatsink by TRACO Power, model TEL 15-1215N-HS, with metal pins on the underside for mounting.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 36.13 / piece)

€ 361.30

plus VAT.

Report legal concerns

Highlights & Details

DC/DC converter, TEL 15N-HS-series

Output 12 V DC / 0.6 A
Power 15 W

Technical specifications

Product type: DC/DC converter

Input voltage (max.): 75 V DC

Max. output current: 0.6 A

Output current (max.) - rounded: 600 mA

Min. input voltage: 36 V DC

Dim: (L x W x H) 24.40 x 14.30 x 24.40 mm

Output voltage (max.): 12 V DC

: 15 W

No. of outputs: 2 x

Type: closed

Operating temperature (max.): +70 °C

Operating temperature (min.): -40 °C

Weight: 14.2 g

Width: 14.30 mm

Height: 24.40 mm

Length: 24.40 mm

Type: TEL 15-4822N-HS

Documents & Downloads

Datasheet

Datasheet 3373064 TracoPower TEL 15-4822N-HS DC/DC converter 12 V DC 0.6 A 15 W

User & Safety Instructions

User & Safety Instructions 3373064 TracoPower TEL 15-4822N-HS DC/DC converter 12 V DC 0.6 A 15 W

Warranty Terms

Warranty Terms 3373064 TracoPower TEL 15-4822N-HS DC/DC converter 12 V DC 0.6 A 15 W

Description

The TEL 15N-HS series combines current specifications in terms of reliability and cost efficiency. These DC/DC converters are housed in ultra-compact DIL-16 metal housings. You have an integrated heat sink. Efficiency of up to 87% allows reliable operation with full load at an ambient temperature of up to +70°C. This series is rounded off by a built-in filter according to EN 55032, class A and a wide 2:1 input range. The TEL 15N-HS series offers a low-cost solution for applications in industry, communications and IT areas.

This text is machine translated.
