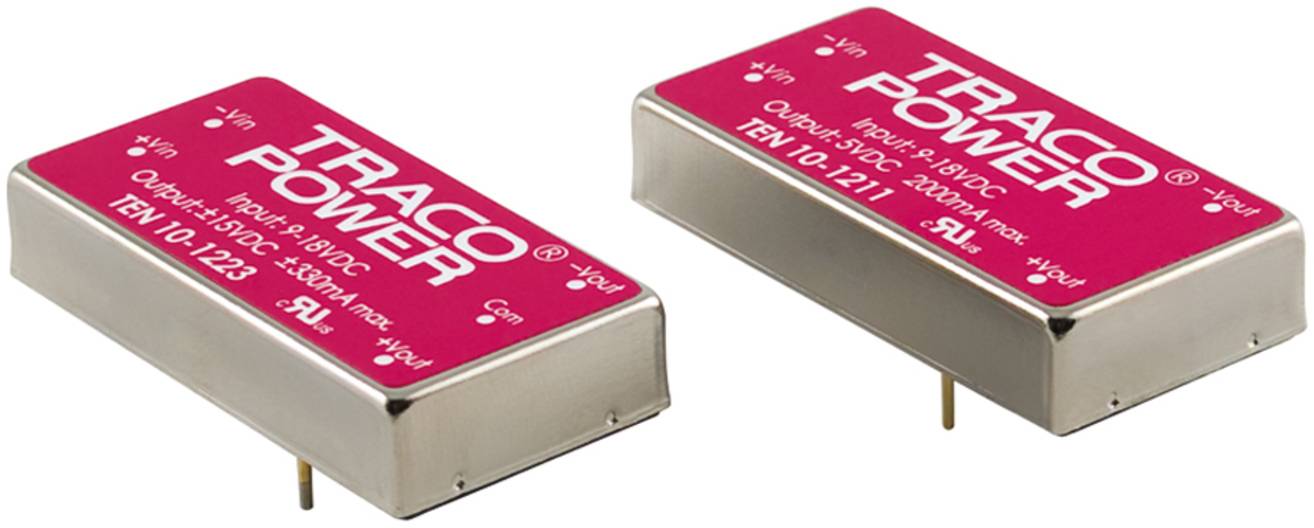

TracoPower TEN 10-1215 DC/DC converter (print) 12 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 3 Piece(s) available
Highlights & Details
TracoPower TEN 10-1215 DC/DC converter (print) 12 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)
- Protected against permanent short circuit
- 3 year guarantee
Technical specifications
- Residual ripple: (20 MHz bandwidth) 50 mVpp
- Power control ± 0.3%
- Load regulation (%): (Single) ±0.5%/(Dual) ± 1%
- Product type
DC/DC converter (print)
- Type
TEN 10-1215
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
24 V DC
- Max. output current
415 mA
- Output current (max.) - rounded
415 mA
- Efficiency (max.)
81 %
10 W
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- Content
1 pc(s)
10 W
- Output voltage
24 V DC
- Output current (details)
415 mA
- Type
TEN 10 Series
- Operating temperature
-40 - +75 °C
- Mains control
max. ±0.3 %
Documents & Downloads
Datasheet
Datasheet 154330 TracoPower TEN 10-1215 DC/DC converter (print) 12 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 154330 TracoPower TEN 10-1215 DC/DC converter (print) 12 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 154330 TracoPower TEN 10-1215 DC/DC converter (print) 12 V DC 24 V DC 415 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Description
Wide 2:1 input range, protected against permanent short circuit , input filter in accordance with EN 55022, class A.
