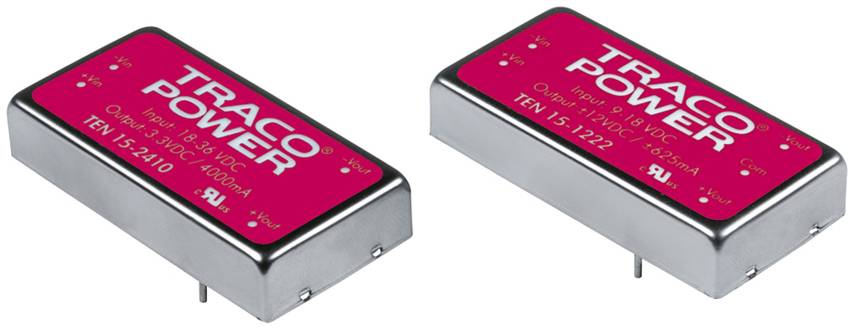

TracoPower TEN 15-1212 DC/DC converter (print) 12 V DC 12 V DC 1.25 A 15 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Control deviations: For input variation max. ± 5 %, for load variation max. ±1 %
- Ripple: 75 mV pk-pk (20 MHz bandwidth)
- Product type
DC/DC converter (print)
- Type
TEN 15-1212
- Nominal voltage
12 V DC
- Min. input voltage
12 V DC
- Input voltage (max.)
12 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
- Efficiency (max.)
86 %
15 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- Content
1 pc(s)
15 W
- Output voltage
12 V DC
- Output current (details)
1250 mA
- Type
TEN 15 Series
- Input voltage
9 - 18 V DC
- Efficiency
86 %
- Operating temperature
(above 70 ºC power reduction 3.5 %/K) -40 - +85 °C
- Insulation voltage
1500 V DC
Documents & Downloads
Datasheet
Datasheet 157131 TracoPower TEN 15-1212 DC/DC converter (print) 12 V DC 12 V DC 1.25 A 15 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 157131 TracoPower TEN 15-1212 DC/DC converter (print) 12 V DC 12 V DC 1.25 A 15 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 157131 TracoPower TEN 15-1212 DC/DC converter (print) 12 V DC 12 V DC 1.25 A 15 W No. of outputs: 1 x Content 1 pc(s)
Description
Wide 2:1 input range, very high degree of efficiency, input filter according to EN55022, class A and FCC, level A, without external components. Continuous short circuit protection, six-sided shielded metal housing with insulated base plate, industry standard footprint. Safety/approvals standards: UL 60950-1, EN 60950-1, IEC 60950-1.
