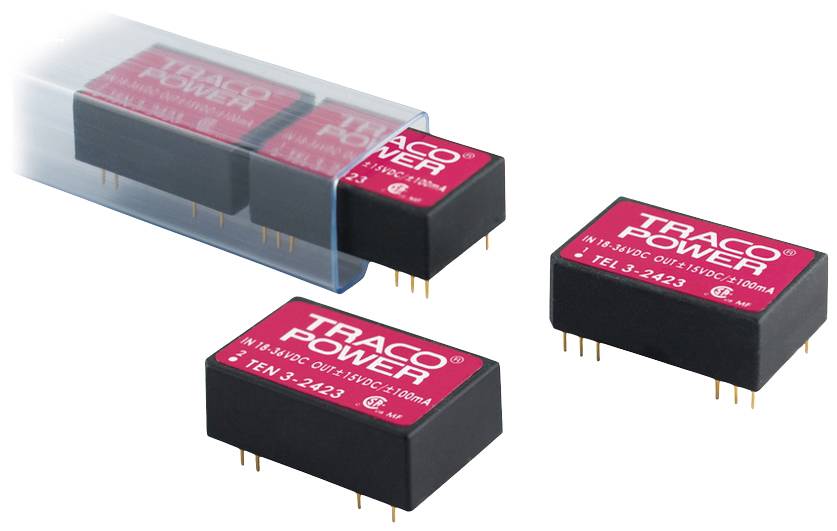

TracoPower TEN 3-0511 DC/DC converter (print) 5 V DC 5 V DC 500 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 20.16
30
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 20.16 / piece)
€ 201.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 3-0511
- Nominal voltage
5 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
9 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
73 %
3 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 31.8 x 14.7 x 20.3 mm
- Height
20.3 mm
- Length
31.8 mm
- Width
14.7 mm
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
12 g
- Content
1 pc(s)
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3372844 TracoPower TEN 3-0511 DC/DC converter (print) 5 V DC 5 V DC 500 mA 3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372844 TracoPower TEN 3-0511 DC/DC converter (print) 5 V DC 5 V DC 500 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3372844 TracoPower TEN 3-0511 DC/DC converter (print) 5 V DC 5 V DC 500 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
2:1 input range, short-circuit proof, E/A-insulation 1500 V/DC, input filter according to EN 55022, class A, industry-standard pinning.
