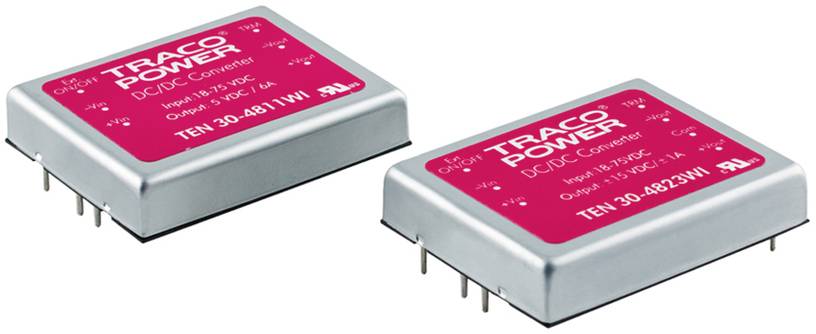

TracoPower TEN 30-4813WI DC/DC converter (print) 48 V DC 15 V DC 2 A 30 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 80.66 / piece)
€ 806.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 30-4813WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Efficiency (max.)
88 %
30 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 40.6 x 15.8 x 50.8 mm
- Height
50.8 mm
- Length
40.6 mm
- Width
15.8 mm
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Weight
48 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370417 TracoPower TEN 30-4813WI DC/DC converter (print) 48 V DC 15 V DC 2 A 30 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370417 TracoPower TEN 30-4813WI DC/DC converter (print) 48 V DC 15 V DC 2 A 30 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370417 TracoPower TEN 30-4813WI DC/DC converter (print) 48 V DC 15 V DC 2 A 30 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370417 TracoPower TEN 30-4813WI DC/DC converter (print) 48 V DC 15 V DC 2 A 30 W No. of outputs: 1 x Content 1 pc(s)
Description
30 W converter in 50.8 mm x 40.64 mm metal housing, 4:1 input range, input/output insulation 1500 V/DC, input filter according to EN 55022, class A, external on/off.
