TracoPower TEN 40-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 10 A 40 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 5
Total (€ 96.63 / piece)
€ 483.15
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 40-4810WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
3.3 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Efficiency (max.)
86 %
40 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 45.72 x 15.8 x 27.9 mm
- Height
27.9 mm
- Length
45.72 mm
- Width
15.8 mm
- Output voltage (max.)
3.3 V DC
- Output voltage (min.)
3.3 V DC
- Weight
60 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370551 TracoPower TEN 40-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 10 A 40 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370551 TracoPower TEN 40-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 10 A 40 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370551 TracoPower TEN 40-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 10 A 40 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370551 TracoPower TEN 40-4810WI DC/DC converter (print) 48 V DC 3.3 V DC 10 A 40 W No. of outputs: 1 x Content 1 pc(s)
Description

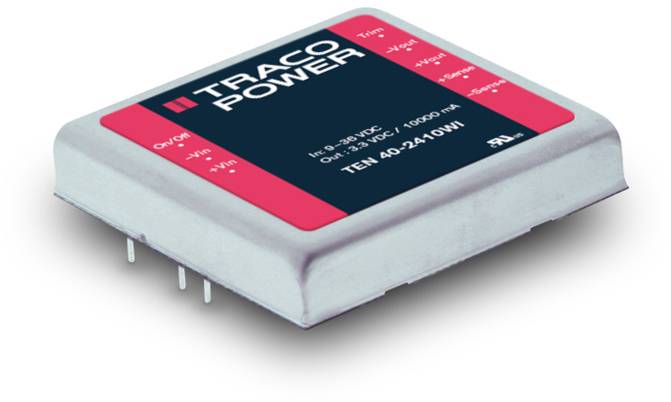

40 W in the 50.8 mm x 50.8 mm x 10 mm metal housing, 4:1 input ranges, protected against permanent short circuit, low voltage cut-off, remote on/off.
