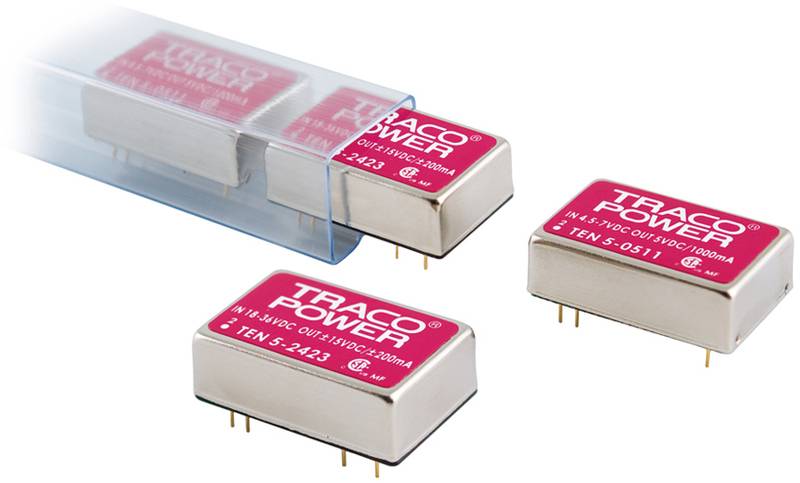

TracoPower TEN 5-0513 DC/DC converter (print) 5 V DC 15 V DC 400 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 36.97 / piece)
€ 369.70
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TEN 5-0513
- Nominal voltage
5 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
7 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
82 %
5 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 20.3 x 14.3 x 31.8 mm
- Height
31.8 mm
- Length
20.3 mm
- Width
14.3 mm
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Weight
30 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370618 TracoPower TEN 5-0513 DC/DC converter (print) 5 V DC 15 V DC 400 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370618 TracoPower TEN 5-0513 DC/DC converter (print) 5 V DC 15 V DC 400 mA 5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370618 TracoPower TEN 5-0513 DC/DC converter (print) 5 V DC 15 V DC 400 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370618 TracoPower TEN 5-0513 DC/DC converter (print) 5 V DC 15 V DC 400 mA 5 W No. of outputs: 1 x Content 1 pc(s)
Description
2:1 input range, input/output insulation 1500 V/DC, short circuit, input filter according to EN 55022, class A, DIL 24 casing with industry-standard pins.
