Buy TracoPower TEN 5-1211 DC/DC converter (print) 12 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)

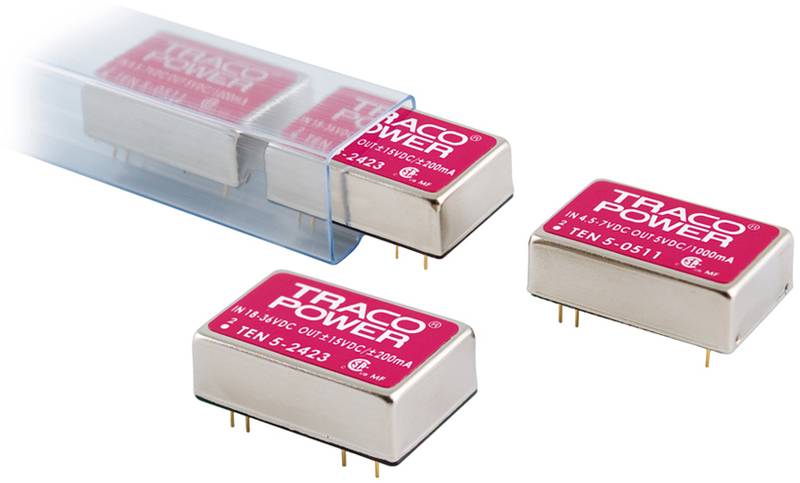

'Three TRACO POWER voltage converters: TEN 5-2413 and TEN 5-0511. Compact modules with pins, suitable for electronic applications.'

Datasheet (PDF)

Fast track dispatch on Fri, 25 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Control deviations: For input variation max. ± 0.3 %, for load variation max. ±2 %
Ripple: (20 MHz bandwidth) 50 mV pk-pk

Product type: DC/DC converter (print)

Type: TEN 5-1211

Nominal voltage: 12 V DC

Min. input voltage: 9 V DC

Input voltage (max.): 18 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 1 A

Output current (max.) - rounded: 1 A

Efficiency (max.): 81 %

: 5 W

Insulation voltage: 1500 V DC

Enclosure: DIL 24

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 32 x 20 x 10 mm

Height: 10 mm

Length: 32 mm

Width: 20 mm

Content: 1 pc(s)

: 5 W

Output voltage: 5 V DC

Output current (details): 1000 mA

Type: TEN 5 Series

Input voltage: 9 - 18 V DC

Efficiency: 81 %

Operating temperature: (above 70 ºC power reduction 3.5 %/K) -40 - +85 ºC °C

Insulation voltage: 1500 V DC

Documents & Downloads

Datasheet

Datasheet 157100 TracoPower TEN 5-1211 DC/DC converter (print) 12 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 157100 TracoPower TEN 5-1211 DC/DC converter (print) 12 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 157100 TracoPower TEN 5-1211 DC/DC converter (print) 12 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)

Description

Wide 2:1 input range, high degree of efficiency, input filter according to EN55022, class A and FCC, level A, without external components. Protected against permanent short circuit, industry standard pinning, shielded metallic housing with insulated base plate. Safety standards/approvals according to UL/cUL 60950-1, EN 60950-1 and IEC 60950-1.
