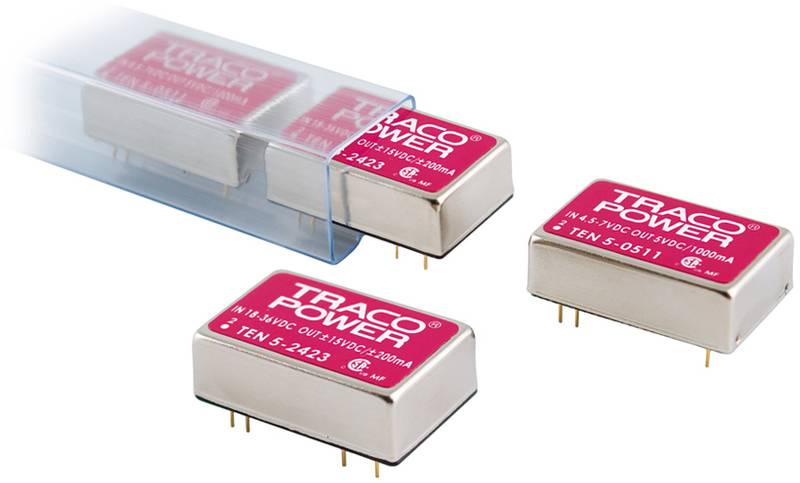

TracoPower TEN 5-1222 DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Control deviations: For input variation max. ± 0.3 %, for load variation max. ±2 %
- Ripple: (20 MHz bandwidth) 50 mV pk-pk
- Product type
DC/DC converter (print)
- Type
TEN 5-1222
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
2 x
- Output voltages
12 V DC
-12 V DC
- Max. output current
250 mA
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
84 %
6 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32 x 20 x 10 mm
- Height
10 mm
- Length
32 mm
- Width
20 mm
- Content
1 pc(s)
6 W
- Output voltage
12 V DC
- Output current (details)
±250 mA
- Type
TEN 5 Series
- Input voltage
9 - 18 V DC
- Efficiency
84 %
- Operating temperature
(above 70 ºC power reduction 3.5 %/K) -40 - +85 ºC °C
- Insulation voltage
1500 V DC
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 157102 TracoPower TEN 5-1222 DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 157102 TracoPower TEN 5-1222 DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 157102 TracoPower TEN 5-1222 DC/DC converter (print) 12 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Description
Wide 2:1 input range, high degree of efficiency, input filter according to EN55022, class A and FCC, level A, without external components. Protected against permanent short circuit, industry standard pinning, shielded metallic housing with insulated base plate. Safety standards/approvals according to UL/cUL 60950-1, EN 60950-1 and IEC 60950-1.
