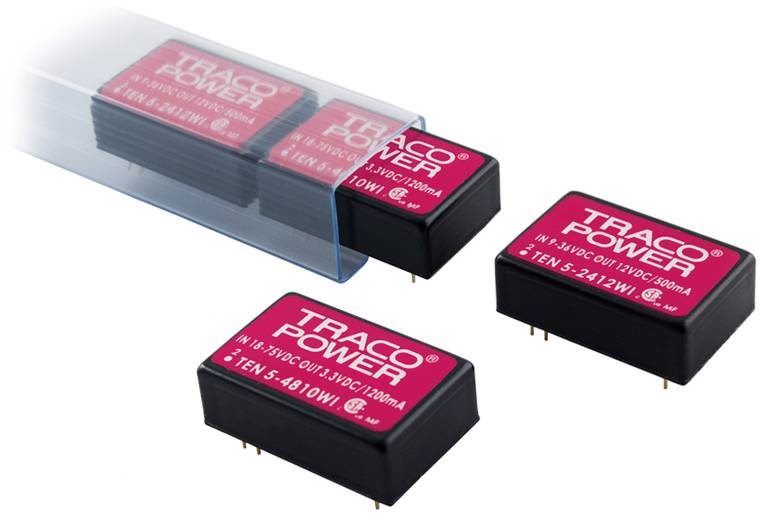

TracoPower TEN 5-4822WI DC/DC converter (print) 48 V DC 12 V DC, -12 V DC 250 mA 5 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 31.92
30
4% = € 1.38
€ 30.54
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 31.92 / piece)
€ 319.20
plus VAT.
14-day return policy included
Technical specifications
- Control deviations: For input variation max. ± 0.3 %, for load variation max. ±2 %
- Product type
DC/DC converter (print)
- Type
TEN 5-4822WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
2 x
- Output voltages
12 V DC
-12 V DC
- Max. output current
250 mA
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
84 %
5 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32 x 20 x 10 mm
- Height
10 mm
- Length
32 mm
- Width
20 mm
- Content
1 pc(s)
5 W
- Type
TEN 5 Series
- Operating temperature
(above 70 ºC power reduction 3.5 %/K) -40 - +85 ºC
- Casing
DIP-24, SMD
Documents & Downloads
Datasheet
Datasheet 3369903 TracoPower TEN 5-4822WI DC/DC converter (print) 48 V DC 12 V DC, -12 V DC 250 mA 5 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3369903 TracoPower TEN 5-4822WI DC/DC converter (print) 48 V DC 12 V DC, -12 V DC 250 mA 5 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3369903 TracoPower TEN 5-4822WI DC/DC converter (print) 48 V DC 12 V DC, -12 V DC 250 mA 5 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3369903 TracoPower TEN 5-4822WI DC/DC converter (print) 48 V DC 12 V DC, -12 V DC 250 mA 5 W No. of outputs: 2 x Content 1 pc(s)
Description
Very wide 4:1 input voltage range, input filter according to EN 55022, class A and FCC, level A with no external components.
