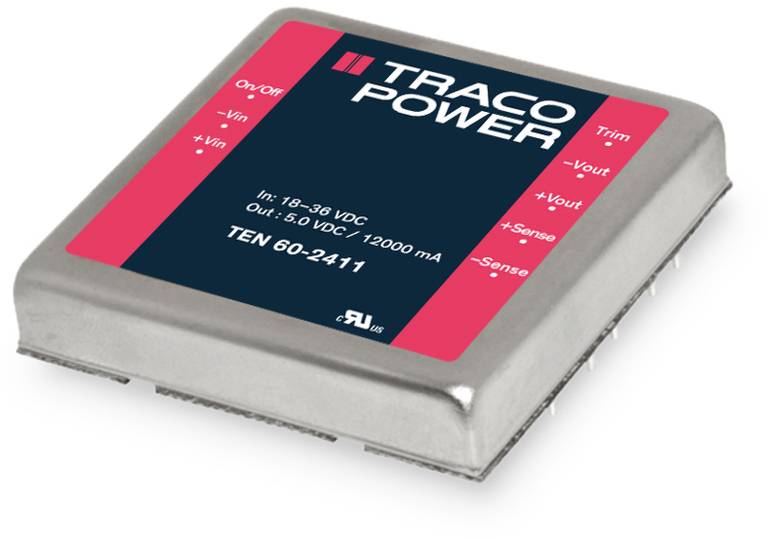

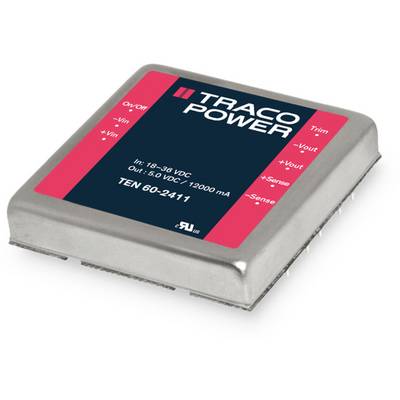

TracoPower TEN 60-2411 DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 5
Total (€ 117.64 / piece)
€ 588.20
plus VAT.
Technical specifications
- Power intake: (shut down) 2.5 mA
- Control deviations: For input variation max. ± 2 %, for load variation max. ±0.5 %
- Ripple: (20 MHz bandwidth) 75 mV pk-pk (3.3 /5 V) /100 mV pk-pk (12/15 V)
- Product type
DC/DC converter (print)
- Type
TEN 60-2411
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
12 A
- Output current (max.) - rounded
12 A
- Efficiency (max.)
90 %
60 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 50.8 x 50.8 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
50.8 mm
- Content
1 pc(s)
60 W
- Type
TEN 60 Series
- Input voltage
18–36 V DC
- Operating temperature
(above 50 ºC power reduction 2 %/K) -40 - +85 °C
- Insulation voltage
1500 V DC
Documents & Downloads
Datasheet
Datasheet 3369959 TracoPower TEN 60-2411 DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3369959 TracoPower TEN 60-2411 DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3369959 TracoPower TEN 60-2411 DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3369959 TracoPower TEN 60-2411 DC/DC converter (print) 24 V DC 5 V DC 12 A 60 W No. of outputs: 1 x Content 1 pc(s)
Description
Highest power density 60 W in the 51 x 51 x 10 mm metal housing, 2:1 wide input range, high degree of efficiency. Under and over voltage switch, input filter according to EN55022, class A and FCC, level A (with ext. condenser). Adjustable output voltage ± 10% (with ext. resistance), short circuit proof, external on/off. Safety/approvals standards: cUL/UL 60950-1, IEC/EN 60950-1.
