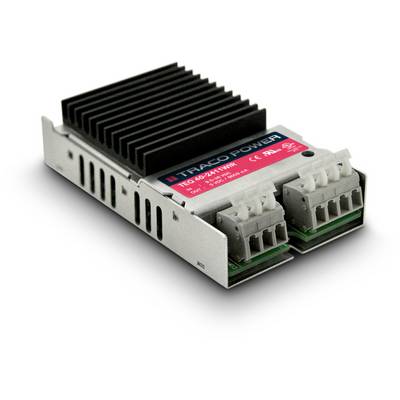

TracoPower TEQ 40-7225WIR DC/DC converter 830 mA 40 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 231.09
-13 %
€ 201.67
plus VAT.
Technical specifications
- Product type
DC/DC converter
- Type
TEQ 40WIR
- Min. input voltage
43 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
2 x
- Max. output current
830 mA
- Output current (max.) - rounded
830 mA
- Efficiency (max.)
90 %
40 W
- Insulation voltage
3000 V DC
- Connection
Spring-loaded connector
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
92 °C
- Dim
(L x W x H) 103 x 57.20 x 26.10 mm
- Height
26.10 mm
- Length
103 mm
- Width
57.20 mm
- RoHS-compliant
Yes
- Output voltage (max.)
24 V DC
-24 V DC
- Output voltage (min.)
24 V DC
-24 V DC
- Weight
129 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2196486 TracoPower TEQ 40-7225WIR DC/DC converter 830 mA 40 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 2196486 TracoPower TEQ 40-7225WIR DC/DC converter 830 mA 40 W No. of outputs: 2 x Content 1 pc(s)
