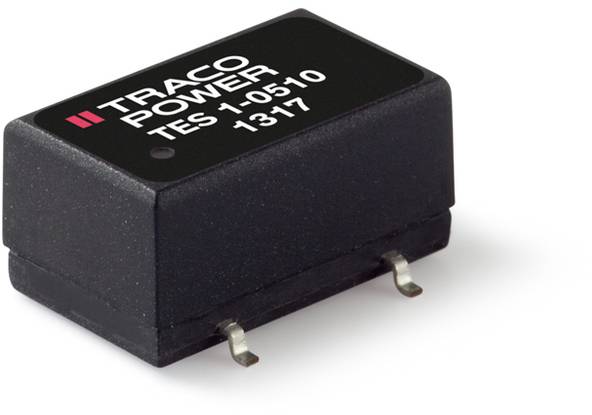

TracoPower TES 1-0512 DC/DC converter (SMD) 5 V DC 12 V DC 85 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 7.13
30
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 7.13 / piece)
€ 71.30
plus VAT.
Technical specifications
- Ripple: 120 mV
- Product type
DC/DC converter (SMD)
- Type
TES 1-0512
- Nominal voltage
5 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
85 mA
- Output current (max.) - rounded
85 mA
- Efficiency (max.)
78 %
1 W
- Insulation voltage
1500 V DC
- Enclosure
SMD 14
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Content
1 pc(s)
1 W
- Type
TES Series
- Operating temperature
-40 - +85 °C
- Insulation voltage
1500 V DC
- Residual ripple
120 mV
Documents & Downloads
Datasheet
Datasheet 3372786 TracoPower TES 1-0512 DC/DC converter (SMD) 5 V DC 12 V DC 85 mA 1 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372786 TracoPower TES 1-0512 DC/DC converter (SMD) 5 V DC 12 V DC 85 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3372786 TracoPower TES 1-0512 DC/DC converter (SMD) 5 V DC 12 V DC 85 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Description
Small SMD casing with industry-standard pins, single and dual output, high degree of efficiency.
