TracoPower TES 1-2421 DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Ripple: 120 mV
- Product type
DC/DC converter (SMD)
- Type
TES 1-2421
- Nominal voltage
24 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
- Efficiency (max.)
73 %
1 W
- Insulation voltage
1500 V DC
- Enclosure
SMD 18
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Content
1 pc(s)
1 W
- Output voltage
5 V DC
- Output current (details)
±100 mA
- Type
TES 1-2421
- Operating temperature
-40 - +85 °C
- Insulation voltage
1500 V DC
- Residual ripple
120 mV
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 156549 TracoPower TES 1-2421 DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 156549 TracoPower TES 1-2421 DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 156549 TracoPower TES 1-2421 DC/DC converter (SMD) 24 V DC 5 V DC, -5 V DC 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)
Description

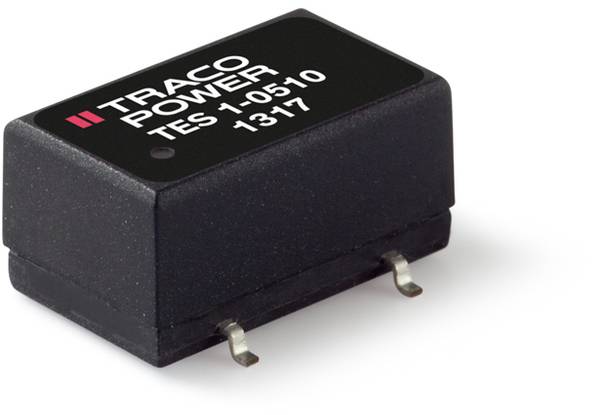

Small SMD casing with industry-standard pins, single and dual output, high degree of efficiency.
