Buy TracoPower TEX 120-124 AC/DC PSU module 28 V DC 5 A 120 W

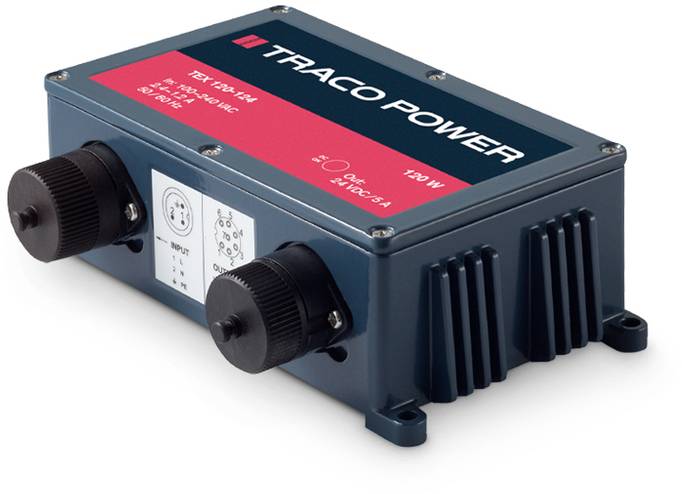

A rectangular electronic device with cable connections and the inscription 'TRACO POWER'. It is used for power supply or conversion.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 284.87 / piece)

€ 284.87

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TracoPower TEX 120-124 AC/DC PSU module 28 V DC 5 A 120 W

Sealed die-cast aluminum housing
Anschluss über wasserdichte Ein-/Ausgangsstecker
Shock and vibration immunity

Technical specifications

Product type: AC/DC PSU module

Input voltage (max.): 264 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Min. input voltage: 85 V AC

Dim: (L x W x H) 93 x 174 x 56 mm

Output voltage (max.): 28 V DC

Connection: Plug

: 120 W

No. of outputs: 1 x

Output voltage 1: 24 V DC

Output current 1: 5 A

Type: closed

Weight: 1 kg

Type: Synchronised

Width: 174 mm

Height: 56 mm

Length: 93 mm

Type: TEX 120-124

: 120 W

Output voltage: 24 V

Output current (details): 5 A

Input voltage: 85 - 264 V/AC, 85 - 375 V DC

Documents & Downloads

Datasheet

Datasheet 511878 TracoPower TEX 120-124 AC/DC PSU module 28 V DC 5 A 120 W

Warranty Terms

Warranty Terms 511878 TracoPower TEX 120-124 AC/DC PSU module 28 V DC 5 A 120 W

Description

These industrial Switching power supplies are designed for use in extreme environments. The robust Pressure cast - Aluminum housing is resistant to Water, Ice, Oil and Dust to IP 67 and NEMA 4X standards. The shock-and vibration-proof construction allows the assembly of the power supply directly to the machine. These Network devices are also available with an approval according to ATEX 94 / 9 for use in hazardous areas, eg in the chemical and food industries.
