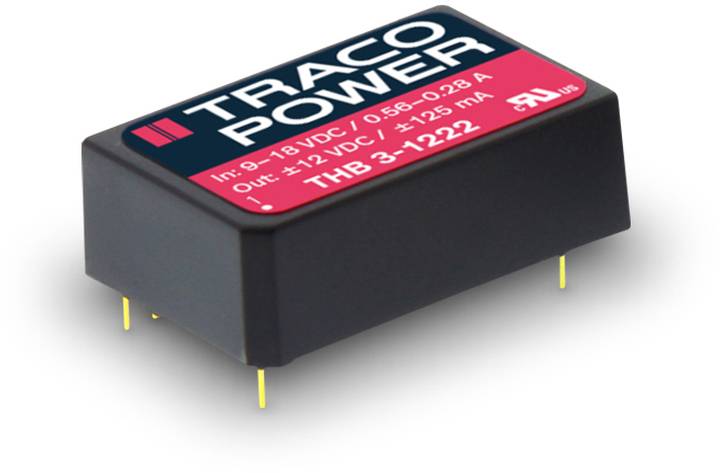

TracoPower THB 3-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 42.01 / piece)
€ 420.10
plus VAT.
14-day return policy included
Highlights & Details
DC/DC converter THB 3 series, 3 Watt, 2:1 input, reinforced insulation
- 3-year manufacturer's guarantee
Technical specifications
- Control deviations: input change ±0.5 %, load change Single ±1 %/Dual ±2 %
- Ripple: 150 mVpk-pk (20 MHz bandwidth)
- Product type
DC/DC converter (print)
- Type
THB 3-2422
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Output voltages
12 V DC
-12 V DC
- Max. output current
125 mA
- Output current (max.) - rounded
125 mA
- Efficiency (max.)
83 %
3 W
- Insulation voltage
4000 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32 x 20 x 10 mm
- Height
10 mm
- Length
32 mm
- Width
20 mm
- Content
1 pc(s)
3 W
- Type
THB Series
- Operating temperature
(above 70ºC power reduction) -40 to +85 °C
- Insulation voltage
(60 s/50 Hz) efficiency. 4000 V AC
Documents & Downloads
Datasheet
Datasheet 3370004 TracoPower THB 3-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3370004 TracoPower THB 3-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370004 TracoPower THB 3-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370004 TracoPower THB 3-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Description
Further 2:1 input range, input/output insulation 400 V/AC eff., short circuit protection. Reinforced insulation for 300 V/AC operating voltage, safety standards for medical and industrial applications. Input filter according to EN 55022, class A. Safety standards/approvals cUL/UL 60950-1, IEC/EN 60950-1, EN 50124-1&2, IEC/EN/UL 60601-1, CSA C22.2 No. 601-1.
