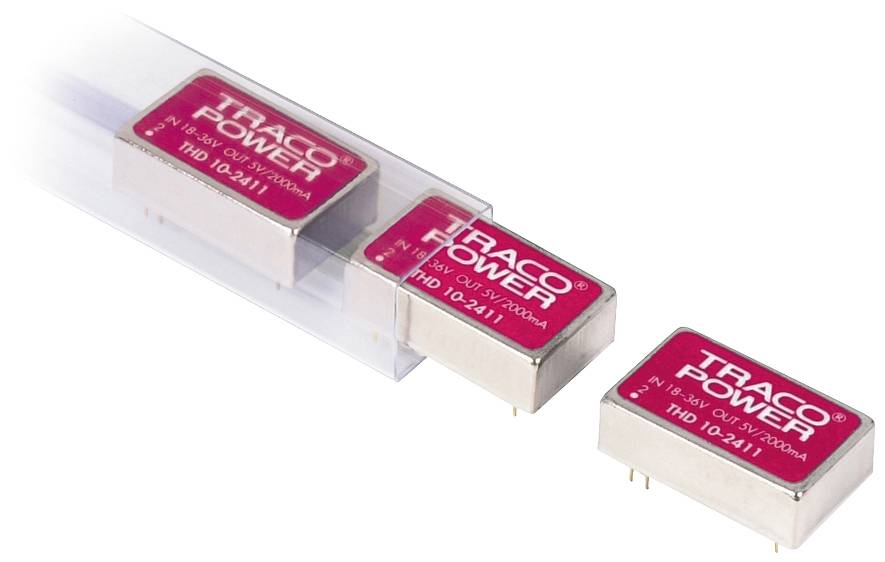

TracoPower THD 10-4809 DC/DC converter (print) 48 V DC 2.5 V DC 3 A 10 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 50.41 / piece)
€ 504.10
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
THD 10-4809
- Nominal voltage
48 V DC
- Min. input voltage
36 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
2.5 V DC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Efficiency (max.)
83 %
10 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
71 °C
- Dim
(L x W x H) 31.8 x 20.3 x 14.3 mm
- Height
14.3 mm
- Length
31.8 mm
- Width
20.3 mm
- Output voltage (max.)
2.5 V DC
- Output voltage (min.)
2.5 V DC
- Weight
17.3 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370772 TracoPower THD 10-4809 DC/DC converter (print) 48 V DC 2.5 V DC 3 A 10 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370772 TracoPower THD 10-4809 DC/DC converter (print) 48 V DC 2.5 V DC 3 A 10 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370772 TracoPower THD 10-4809 DC/DC converter (print) 48 V DC 2.5 V DC 3 A 10 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370772 TracoPower THD 10-4809 DC/DC converter (print) 48 V DC 2.5 V DC 3 A 10 W No. of outputs: 1 x Content 1 pc(s)
Description
High power density in the DIL-24 metal housing, 2:1 input range, input/output insulation 1500 V/DC, protected against permanent short circuit, input filter according to EN 55022, class A, without external components.
