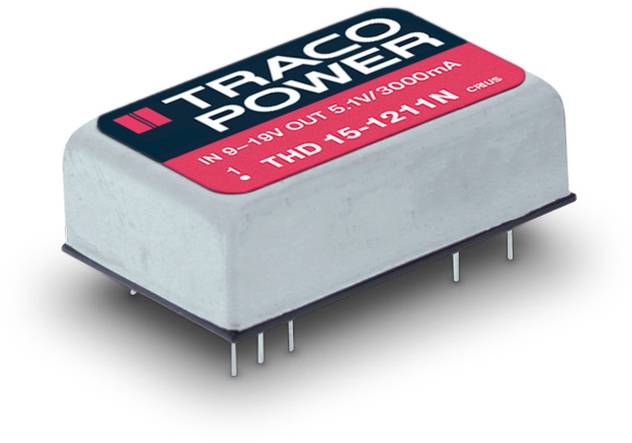

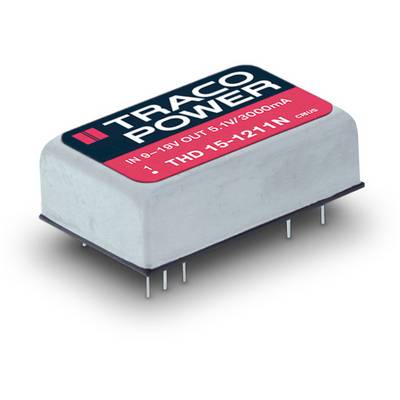

TracoPower THD 15-1211N DC/DC converter (print) 12 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 40.33 / piece)
€
Technical specifications
- Product type
DC/DC converter (print)
- Type
THD 15-1211N
- Nominal voltage
12 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
5.1 V DC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
- Efficiency (max.)
90 %
15 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 31.8 x 20.3 x 14 mm
- Height
14 mm
- Length
31.8 mm
- Width
20.3 mm
- Output voltage (max.)
5.1 V DC
- Output voltage (min.)
5.1 V DC
- Weight
14.4 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3372887 TracoPower THD 15-1211N DC/DC converter (print) 12 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372887 TracoPower THD 15-1211N DC/DC converter (print) 12 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3372887 TracoPower THD 15-1211N DC/DC converter (print) 12 V DC 5.1 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Description
High power density in the DIL-24 metal housing, 2:1 input range, input/output insulation 1500 V/DC, external on/off, input filter according to EN 55022, class A, industry-standard pinning.
