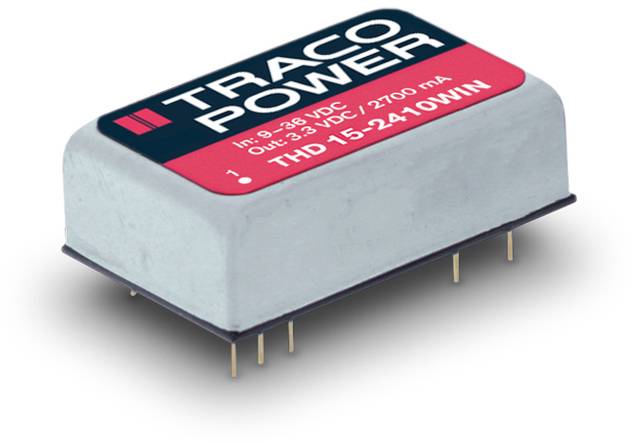

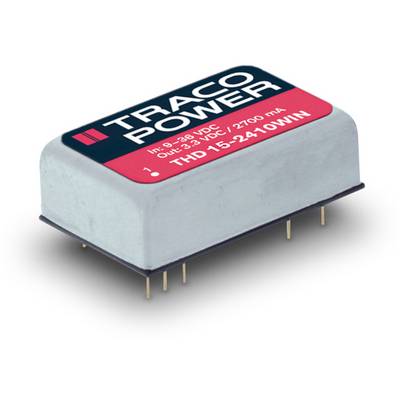

TracoPower THD 15-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1.5 A 15 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 58.82 / piece)
€ 588.20
plus VAT.
14-day return policy included
Highlights & Details
DC/DC converter THD 15 series
- Highest power density in the DIL-24 casing
- Shielded metal casing with insulated base plate
- High electrical efficieny
- Ultra wide 4:1 input ranges
- No base load required
- Input filter according to EN 55022, class A without external components
- E/A-INSULATION 1500 VDC
- Operating temperature range -40°C to +85°C.
- Remote on/off
- Industry-standard pinning
Technical specifications
- Control deviations: Input change: 0.5 % , load change (0-100%): 1.0 %
- Remaining ripple <60 mV pk-pk (20 MHz bandwidth)
- Short-circuit protection: Continuous, automatic Restart
- Safety standards UL/cUL 60950-1, IEC/EN 60950-1.
- Product type
DC/DC converter (print)
- Type
THD 15-4821WIN
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Efficiency (max.)
86 %
15 W
- Enclosure
DIP 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 31.80 x 20.30 x 10.20 mm
- Height
10.20 mm
- Length
31.80 mm
- Width
20.30 mm
- Weight
14.4 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370068 TracoPower THD 15-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1.5 A 15 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3370068 TracoPower THD 15-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1.5 A 15 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370068 TracoPower THD 15-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1.5 A 15 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370068 TracoPower THD 15-4821WIN DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1.5 A 15 W No. of outputs: 2 x Content 1 pc(s)
Description
The THD-15WIN series offers powerful 15 watt modules with extremely compact dimensions in the metal housing, which require a space of only 6.5 cm2 on the circuit board. These converters work with a high degree of efficiency over the entire load range and need very low current when no load is running. All models have an ultra-wide 4:1 input and exactly regulated output voltages. Typical applications for these converters are in industrial, data and telecommunications as well as battery-operated systems with limited space on the board.
