TracoPower THL 10-4812WI DC/DC converter (print) 48 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 36.97 / piece)
€
Technical specifications
- Type
THL 10-4812WI
- Nominal voltage
48 V DC
- Min. input voltage
24 V DC
- Input voltage (max.)
24 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
830 mA
- Output current (max.) - rounded
830 mA
- Efficiency (max.)
86 %
10 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 25.4 x 25.4 x 20.32 mm
- Height
20.32 mm
- Length
25.4 mm
- Width
25.4 mm
- Content
1 pc(s)
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Weight
15 g
- Product type
DC/DC converter (print)
Documents & Downloads
Datasheet
Datasheet 3370886 TracoPower THL 10-4812WI DC/DC converter (print) 48 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370886 TracoPower THL 10-4812WI DC/DC converter (print) 48 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370886 TracoPower THL 10-4812WI DC/DC converter (print) 48 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370886 TracoPower THL 10-4812WI DC/DC converter (print) 48 V DC 12 V DC 830 mA 10 W No. of outputs: 1 x Content 1 pc(s)
Description

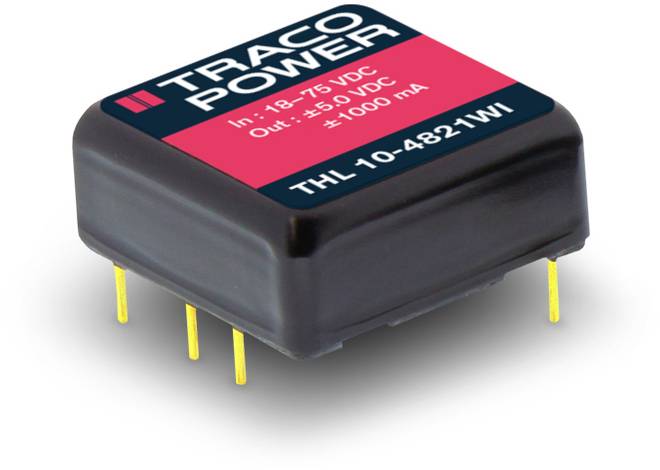

10 Watt in 25.4 mm x 25.4 mm metal housing, 4:1 input range, input/output insulation 1500 V/DC, input filter according to EN 55022, class A.
