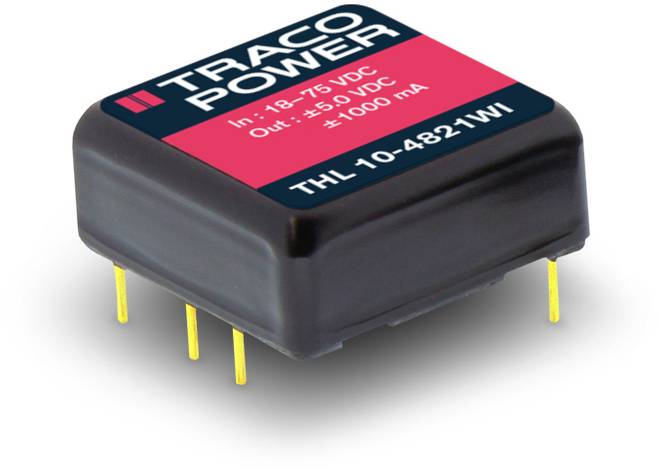

TracoPower THL 10-4821WI DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 36.13 / piece)
€ 361.30
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
THL 10-4821WI
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
2 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
84 %
10 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 25.4 x 25.4 x 20.32 mm
- Height
20.32 mm
- Length
25.4 mm
- Width
25.4 mm
- Output voltage (max.)
5 V DC
-5 V DC
- Output voltage (min.)
5 V DC
-5 V DC
- Weight
15 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370891 TracoPower THL 10-4821WI DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 3370891 TracoPower THL 10-4821WI DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370891 TracoPower THL 10-4821WI DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370891 TracoPower THL 10-4821WI DC/DC converter (print) 48 V DC 5 V DC, -5 V DC 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Description
10 Watt in 25.4 mm x 25.4 mm metal housing, 4:1 input range, input/output insulation 1500 V/DC, input filter according to EN 55022, class A.
