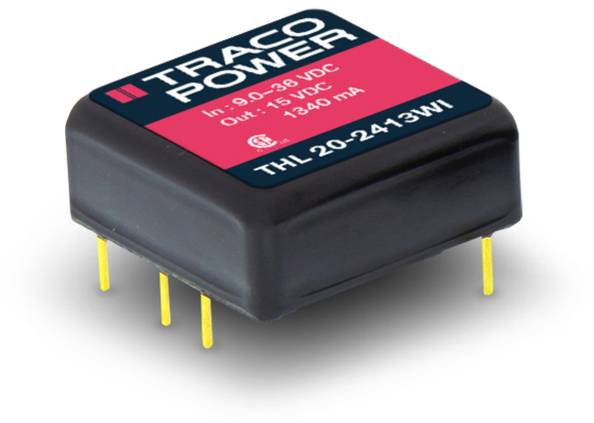

TracoPower THL 20-2413WI DC/DC converter (print) 24 V DC 15 V DC 1.34 A 20 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 55.45 / piece)
€ 554.50
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
THL 20-2413WI
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
1.34 A
- Output current (max.) - rounded
1.34 A
- Efficiency (max.)
89 %
20 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
75 °C
- Dim
(L x W x H) 25.4 x 25.4 x 20.32 mm
- Height
20.32 mm
- Length
25.4 mm
- Width
25.4 mm
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Weight
15 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370899 TracoPower THL 20-2413WI DC/DC converter (print) 24 V DC 15 V DC 1.34 A 20 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370899 TracoPower THL 20-2413WI DC/DC converter (print) 24 V DC 15 V DC 1.34 A 20 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370899 TracoPower THL 20-2413WI DC/DC converter (print) 24 V DC 15 V DC 1.34 A 20 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370899 TracoPower THL 20-2413WI DC/DC converter (print) 24 V DC 15 V DC 1.34 A 20 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact dimensions: 25.4mm x 25.4mm x 10.2mm. Metal case with insulated base plate, 4:1 input range, external on/off, E/A-insulation 1500 V/DC.
