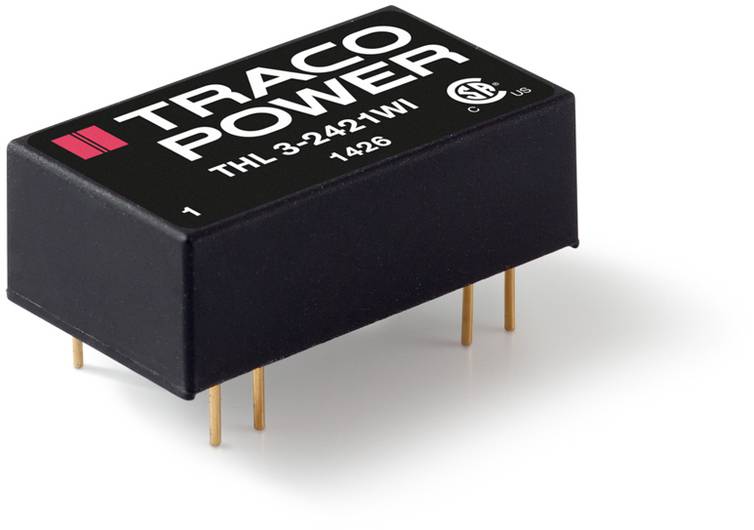

TracoPower THL 3-2411WI DC/DC converter (print) 24 V DC 5.1 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 19.32
30
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 19.32 / piece)
€ 193.20
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
THL 3-2411WI
- Nominal voltage
24 V DC
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5.1 V DC
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
78 %
3 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 13.7 x 23.8 x 12.1 mm
- Height
12.1 mm
- Length
13.7 mm
- Width
23.8 mm
- Output voltage (max.)
5.1 V DC
- Output voltage (min.)
5.1 V DC
- Weight
5.4 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3370940 TracoPower THL 3-2411WI DC/DC converter (print) 24 V DC 5.1 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3370940 TracoPower THL 3-2411WI DC/DC converter (print) 24 V DC 5.1 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3370940 TracoPower THL 3-2411WI DC/DC converter (print) 24 V DC 5.1 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3370940 TracoPower THL 3-2411WI DC/DC converter (print) 24 V DC 5.1 V DC 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact design in the DIL 16 casing, 4:1 input range, input/output insulation 1500 V/DC, short-circuit proof, external on/off, input filter according to EN 55022, class A.
