Buy TracoPower THL 30-2415WI DC/DC converter 24 V DC 1.3 A 30 W

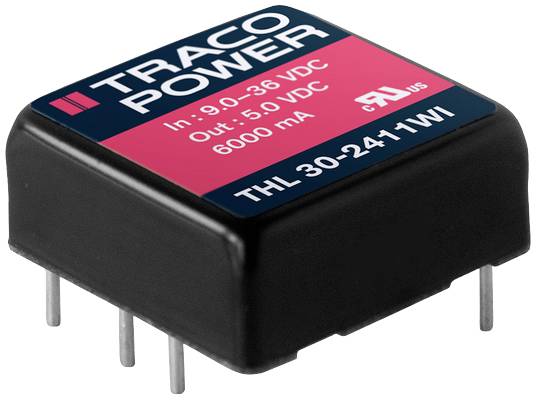

A black power transformer by 'Traco Power', model 'THL 30-2411WI', with specified input and output voltages and current ratings.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 53.77 / piece)

€ 537.70

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter, THL 30WI-series

Output 24 V DC / 1.3 A
Power 30 W

Technical specifications

Product type: DC/DC converter

Input voltage (max.): 36 V DC

Max. output current: 1.3 A

Output current (max.) - rounded: 1.3 A

Min. input voltage: 9 V DC

Dim: (L x W x H) 25.40 x 25.40 x 10.20 mm

Output voltage (max.): 24 V DC

: 30 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): +60 °C

Operating temperature (min.): -40 °C

Weight: 25 g

Width: 25.40 mm

Height: 10.20 mm

Length: 25.40 mm

Type: THL 30-2415WI

Documents & Downloads

Datasheet

Datasheet 3373094 TracoPower THL 30-2415WI DC/DC converter 24 V DC 1.3 A 30 W

User & Safety Instructions

User & Safety Instructions 3373094 TracoPower THL 30-2415WI DC/DC converter 24 V DC 1.3 A 30 W

Warranty Terms

Warranty Terms 3373094 TracoPower THL 30-2415WI DC/DC converter 24 V DC 1.3 A 30 W

Description

The series THL 30WI represents the latest TRACO development in the segment of the 30 W DC/DC-converters. This series was developed to achieve an optimum price-performance ratio. Important features are: Encapsulated metal casing (25.4 mm x 25.4 mm) and an integrated filter according to EN 55032, Class A. Other features include a high degree of efficiency of up to 88%, operating temperature range -40°C to +60°C (without power reduction), precisely regulated outputs, and the latest IT safety approval according to UL 62368-1. The widespread standard pinning in the market enables an easy design in many cost-critical applications.
